Heat Moisture Exchange Filter (Pediatric)
Zhejiang Haisheng Medical Device Co., Ltd.- Type：Surgical Supplies Materials
- Material：Plastic
- Ethylene Oxide Sterilization：Ethylene Oxide Sterilization
- Logo Printing：With Logo Printing
- Transport Package：by Sea and Air
- Trademark：Hisern Medical
Base Info
- Model NO.：A501-4
- Origin：China
- Production Capacity：300, 0000
Description
Basic Info.
Model NO. A501-4 Origin China Production Capacity 300, 0000Product Description

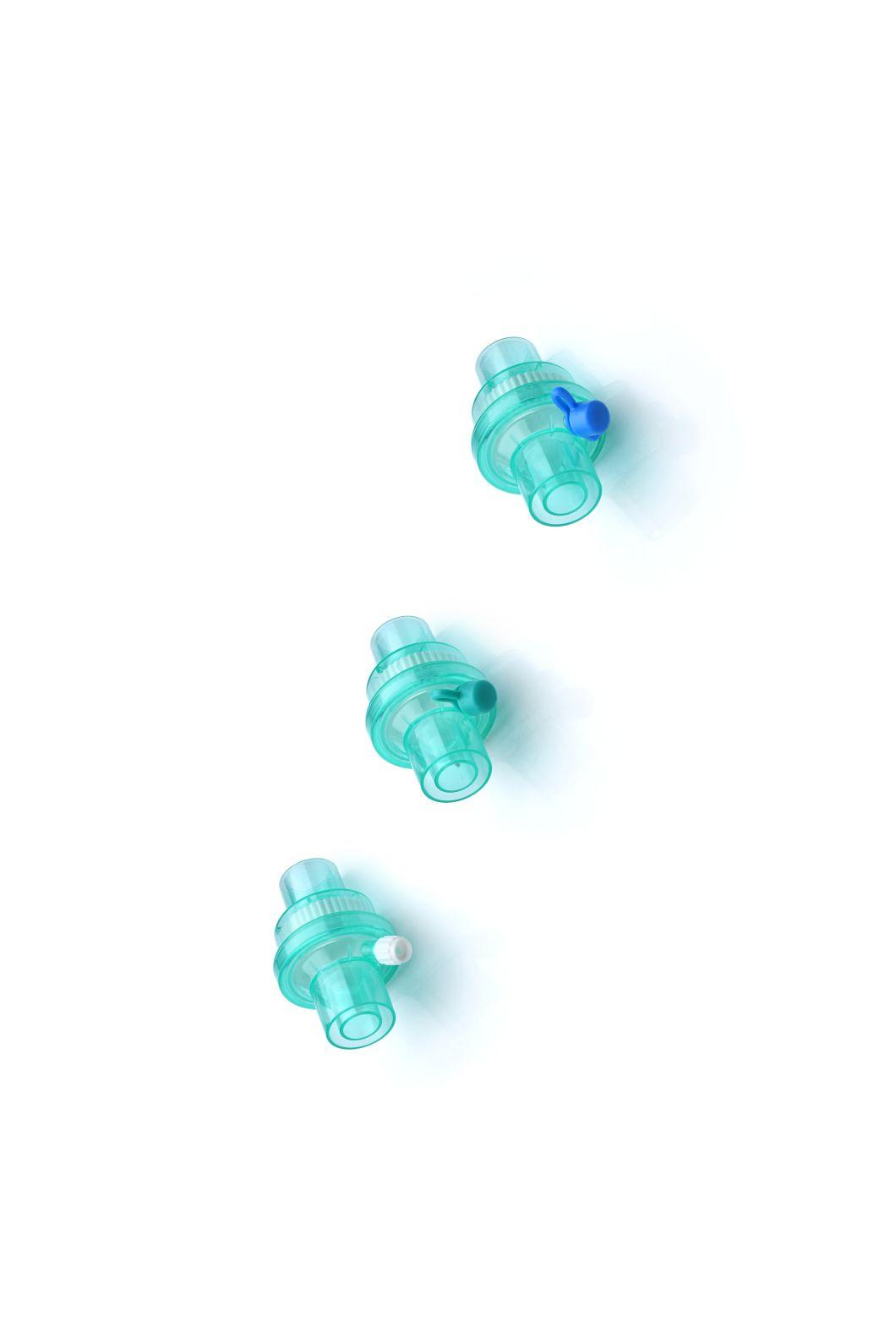

Heat and Moisture Exchanger Filter (HMEF, Pediatric) combines the efficiency of dedicated breathing filters with optimum moisture return.Features:
• Low dead space, to minimize dangers associated with re-breathing carbon dioxide.
• Lightweight, to reduce additional heavy on the tracheal connection.
• Maximizes the humidity of inspired gases.
•ISO, CE&FDA 510K
Parameters:
| Description | Heat Moisture Exchanger Filter (HMEF, Pediatric) |
| Humidity Output | 31mg/H2O @ VT 500ml |
| Filtration Efficiency | BFE 99.9-99.999% VFE 99-99.99% |
| Resistance @ 30 LPM | |
| Resistance @ 60 LPM | |
| Dead space | 20ml |
| Tidal Volume Range | 150-1500ml |
| Connections | 22M/15F-22F/15M |
| Gas Monitoring Luer Port with retainer strap | Yes |
| Weight | 30g |
| REF | Specification | Packing | Carton size | G.W | Shelf Life |
| A501-4 Eco | Pediatric,BFE99.9,VFE99% | 100pcs/carton | 37.5*32*34.5cm | Appro.4KG | 3 years |
| A501-4 | Pediatric,BFE99.99%,VFE99.9% | 100pcs/carton | 37.5*32*34.5cm | Appro.4KG | 3 years |
| A501-4 Pro | Pediatric,BFE99.999%,VFE99.99% | 100pcs/carton | 37.5*32*34.5cm | Appro.4KG | 3 years |
