• Model NO.：98.05.011-98.05.042
• Delivery Time：3-30days
• OEM/ODM：Available
• Package：100 PCS,CTN, 200 PCS,CTN
• Color：Transparent, Blue, Green
• Place of Origin：Hangzhou,China
• Shelf Life：3 Year
• Connections：22m,15f-22f,15m
• Item Name：Heat Moisture Exchanger Filter(Hmef)
• Safety Standard：ISO 13485
• Instrument Classificication：Class II
• Model Number：Hmef Filter
• Sampling Port：Yes
• Luer Cap：Yes
• Transport Package：Paper Plastic Pouch, Carton
• Specification：size adult, size pediatric, size neonate
• Trademark：TRIFANZ
• Origin：Hangzhou, China
• HS Code：9019200000
• Production Capacity：10000,Day

https://trifanz.en.made-in-china.com/product/EdLTjCmlnPkO/China-Ventilation-and-Anesthesia-Breathing-Filters-HEPA-.html
2,Bacterial& Virus Filter(BVF)
https://trifanz.en.made-in-china.com/product/PZpTgQwVhLck/China-Medical-Disposable-Bacterial-and-Viral-Filters-Bvf-with-Sampling-Port.html
3,Tracheostomy Filter (HME)
https://trifanz.en.made-in-china.com/product/FdpaYrwoluWN/China-Surgical-Disposable-Atificial-Nosetracheostomy-Fliter-HME-.html

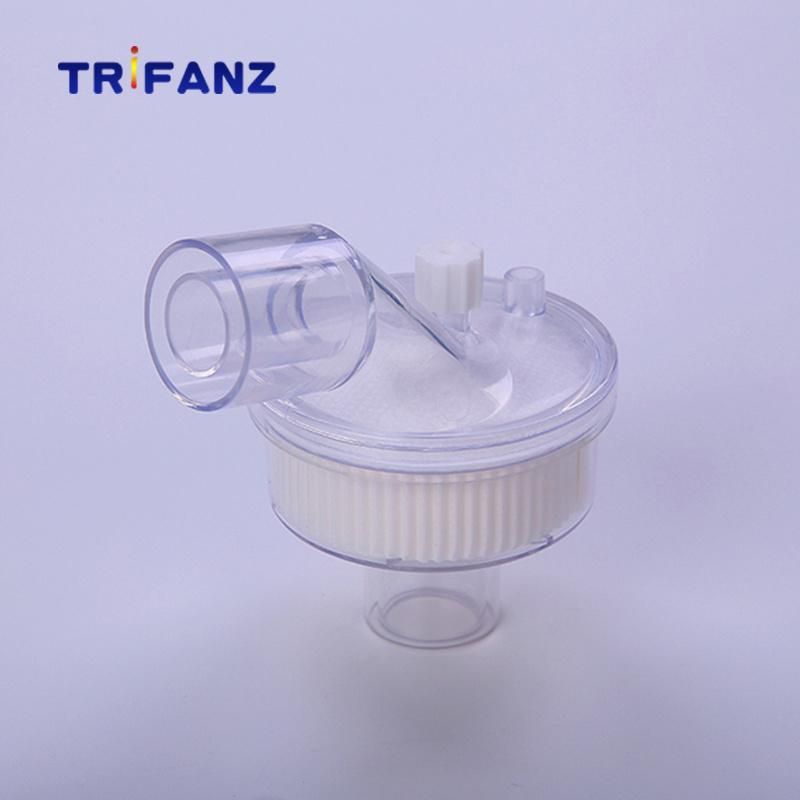

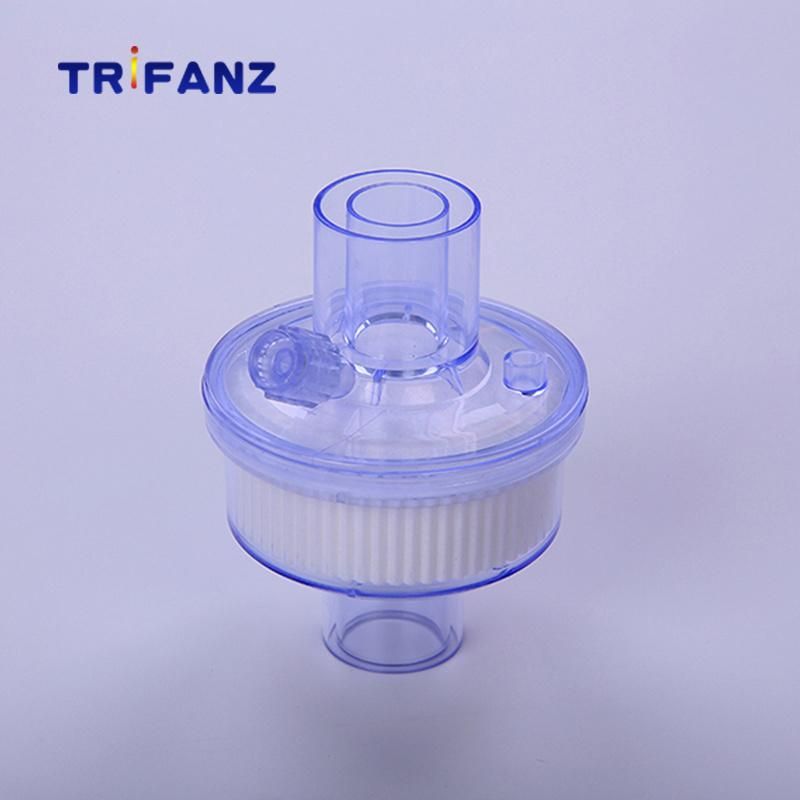

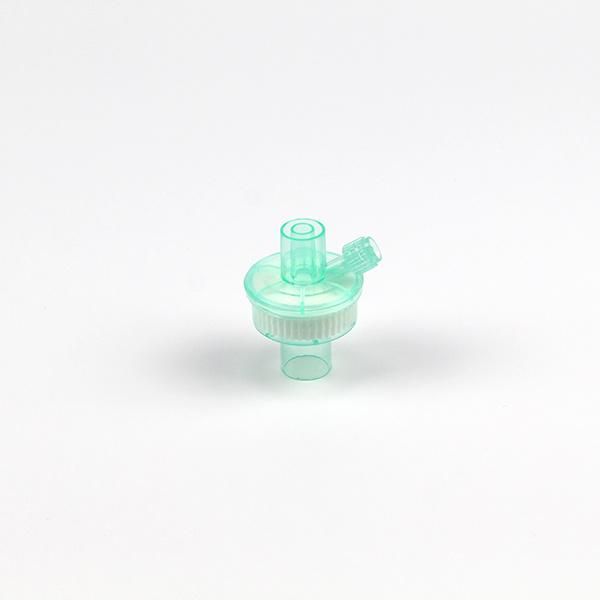

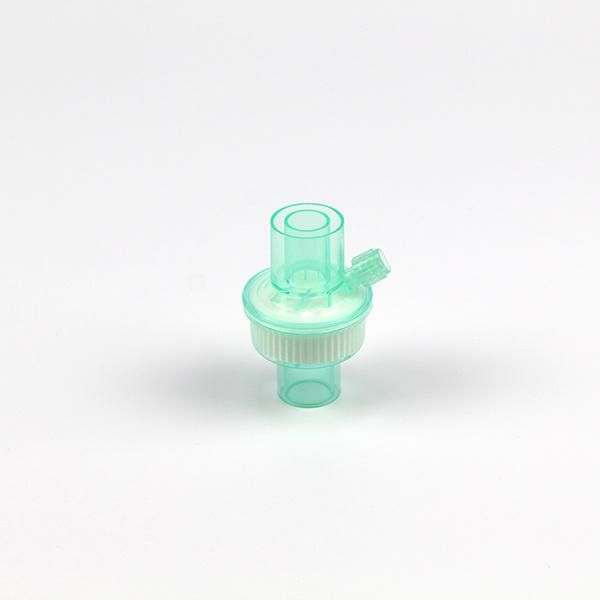

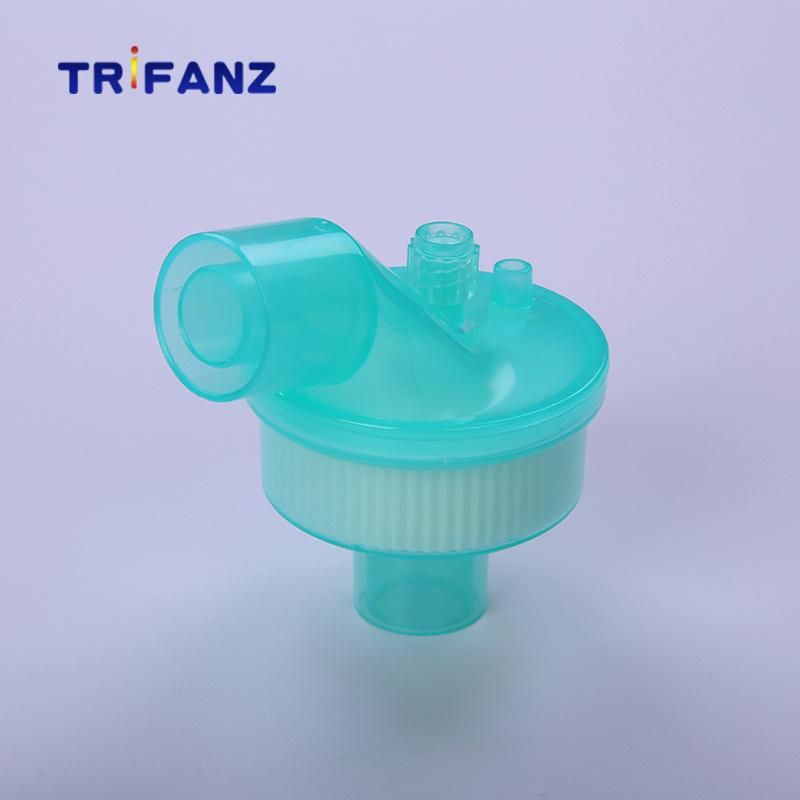

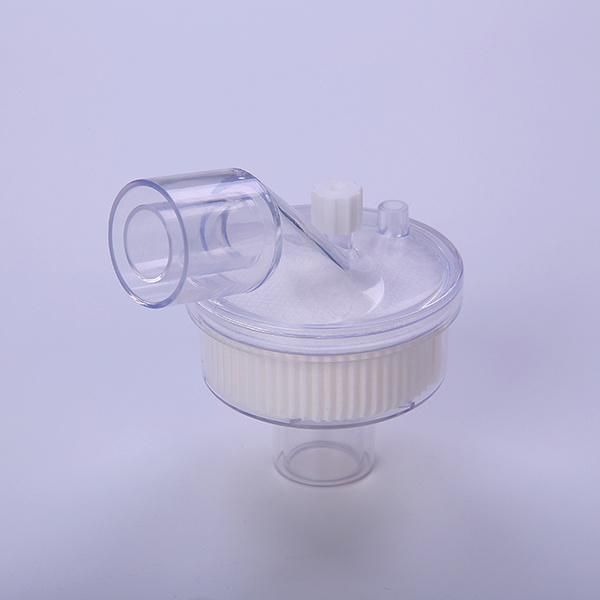

Heat & Moisture Exchange Filter(HMEF)

1.Providing enough humidity for physiological need,filtrting bacteria and other particles lager than 0.3um in anesthetic gas and the filter precision achieves 99.99%
2.The shell is made of medical grade ABS and PP with high quality and non-toxic.
3. Adopt imported 3-layer filtering medium with high efficiency performance.
4.With advantages of good sealing,low breathing flow resistance and small dead space.
5.Humidification rate:>=99.99%
6.Temperature output:30°(at 500ml TV)
7.Resistance:<=0.2KPA(at 30L/min)
8.Connector:15mm/22mm
9.prevent particles, bacteria and other pathogens in anesthesia and breathing circuit from entering the respiratory system.
 Size Adult Adult(Elbow) Pediatric Neonate Apperance




  Sheel material ABS or PP or K-resin K-resin K-resin K-resin Moisture loss(paper/sponge) 15mg 15mg 12mg 10mg Moisture output(paper/sponge) 25mg/@500 VT 25mg/@500VT 24mg/@500VT 22mg/@500VT BFE 99.99% 99.99% 99.99% 99.99% VFE 99.99% 99.99% 99.99% 99.99% Airflow resistance(DRY) 120 Pa 120 Pa 120 Pa 120 Pa Airflow resistance(WET) 150 Pa 150 Pa 150 Pa 150 Pa Filtering type Electrostatic Electrostatic Electrostatic Electrostatic Tidal volume 200-1500ml 200-1500ml 150-300ml 70-150ml Dead space 18 ml 20 ml 12 ml 10 ml Weight 29 g 31 g 8 g 6 g Connector 22F-22M/15F  22F-22M/15F 22F-22M/15F15F-15M/8M Sampling port YES YES YES  YES Package 100PCS/CTN 100PCS/CTN 200PCS/CTN 200PCS/CTN







COMPANY PROFILE:Hangzhou Trifanz Medical Device Co., Ltd is an innovative enterprise supported by the government. As a leading medical devices manufacturer, Hangzhou Trifanz devotes itself to R&D, production and sales of disposable medical anesthesia and breathing products, such as Laryngeal Mask Airway, Endotracheal Tube, Double lumen endobronchial tube, Heat and Moisture Exchanger/ Breathing Filter, Reinforced Tracheal Tube, Breathing Circuit, Closed Suction System, as well as other anesthesia and respiration accessaries, we can supply the various solutions of respiration problem. R & D team:  a group of experts of over 20 years' experience;
Hardware:  the 100,000 class GMP clean workshop on the medical products;
Staff:  80% graduated from University;
QC system: 100% qualification on the quality aim, TRIFANZ will strictly follow the international and domestic medical standard.
Certificate:  ISO13485, china FDA, FSC, SGS, COA, also can do the other certificates as per customer's market.
OEM/ODM services:  Available.

FAQ

1.Q:Are you a factory or trading company?
A: We are a factory, we have rich experience more than 20 years.

2.Q:Where is your factory located? How can i visit there?
A: Our factory is located in Hangzhou city,Zhejiang Province,China.It is about less  than 2 hours from Shanghai airport, We can pick you up if you need, welcome to visit our factory.

3.Q:What is the material for your products?
A. The material is Medical grade raw material.

4.Q:Can you make samples?
A: Yes, we can make samples for you.

5.Q:How does your factory do as quality control?A: Quality is the lift of our factory. We have inspector in different post, and there are three inspectors before packing to get best quality products.

6. Q: How could we pay for you?
A: By T/T,western union, moneygram, paypal, or other payments can be negotiable.

7. Q: How to deliver the goods to us?
A: 1st choice: We will make the quotation for the transportation cost to your place, by sea, by air, by express, so you can make the decision, which way you prefer;
     2nd choice: If you have your own forwarder in China, we can send the goods to the warehouse according to your forwarder Booking Form.

8.Q: What is your warranty on your products?
A: 3 years quality warranty.

How could we contact with you timely?

Well, our hotline , 24 hours for you, also can email to us  directly , will reply to you in 24 hours, or send inquiry to us directly here.∨∨
