• Model NO.：SKB3A006
• Style：Simple
• Logo Printing：With Logo Printing
• Group：All Kinds of People
• Feature：Reusable
• Use：Isolation Stretcher
• Factory Location：2 Hours Drive From Shanghai
• Sample：Available
• OEM：Available
• Warranty：2 Years
• Users′ Manual：Available
• Service Manual：Available
• Service：Lifetime
• Factory Type：Over 13 Years Manufacturer
• Certificate：FDA, Ce, ISO
• Transport Package：Carton,Wooden Box,Others
• Specification：1900*690*500mm
• Trademark：SAIKANG
• Origin：Suzhou, Jiangsu
• HS Code：94029000
• Production Capacity：30000PCS,Year

Basic Info.

Model NO. SKB3A006 Style Simple Logo Printing With Logo Printing Group All Kinds of People Feature Reusable Use Isolation Stretcher Factory Location 2 Hours Drive From Shanghai Sample Available OEM Available Warranty 2 Years Users′ Manual Available Service Manual Available Service Lifetime Factory Type Over 13 Years Manufacturer Certificate FDA, Ce, ISO Transport Package Carton/Wooden Box/Others Specification 1900*690*500mm Trademark SAIKANG Origin Suzhou, Jiangsu HS Code 94029000 Production Capacity 30000PCS/Year

Product Description

SKB3A006 Isolation Stretcher With Negative Filtration System

Isolation stretcher is equipped with own negative filtration system to provide maximum protection and operational safety for both the contaminated person or item and the operational team

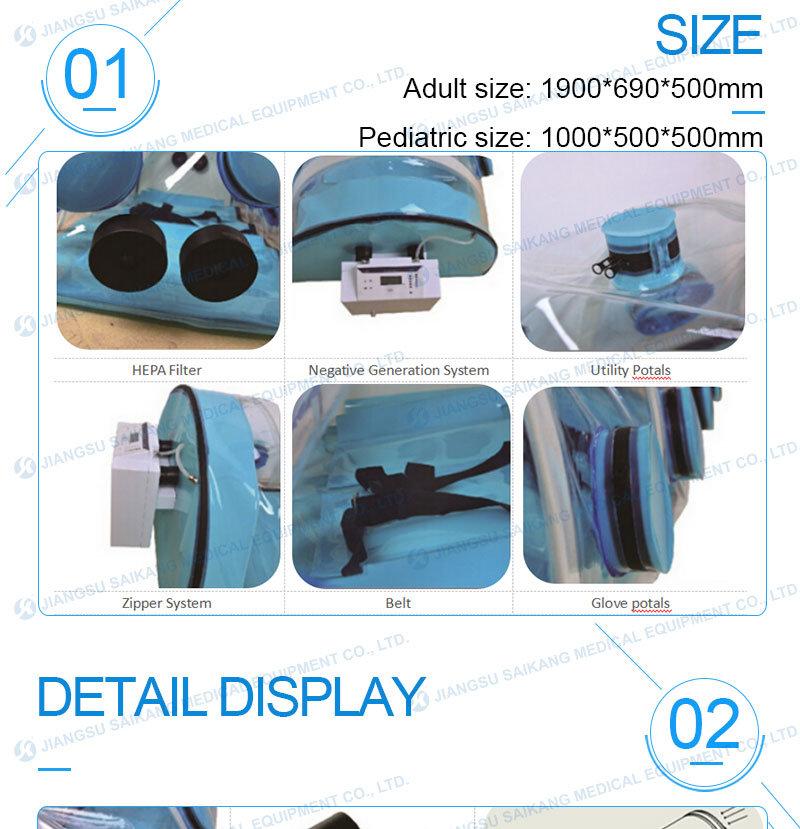

Features

* The chamber negative pressure will be up to -15pa only in 2 minutes after power on

* The "all around" zipper system allows for the chamber to open completely giving easy operator accessibility

* Isolation chamber complete with Batteries for up to 8 hours of continuous use before battery charge required

* Isolation chamber is a fully collapsible unit that requires minimal storage space and is ready for use within seconds

* The chamber liner is made from a special TPU film and strengthened by inserting ABS poles along each side of the structure

* Belt system enables the patient to be fastened while in the chamber or the chamber is securely fastened to a stretcher or bed

* The chamber has ten integrated glove portals on three sides to allow for easy access to the patient and two utility portals used for infusions and other infusions and other medical equipment

Standard Parameters

Unfolded Size (L*W*H)	1900*690*500mm
HEPA Filter	4pcs, 99.999% efficiency for 0.3um particles
Airflow Rate	67±10%(m³/h)
Chamber Noise	<47dB(A)
Alarm	Audio and visual alarm for internal pressure insufficient and low power
Negative pressure	Up to -15Pa in two minutes after power on
Optional	Stretcher
Load-bearing	Up to 150kg
Power Supply	AC220V±10%, 50/60Hz; 110V±10%, 60Hz, Battery voltage: DC12V
Package Size (L*W*H)	770*570*640mm(carton box)
Net Weight	18kg
Gross Weight	20kg

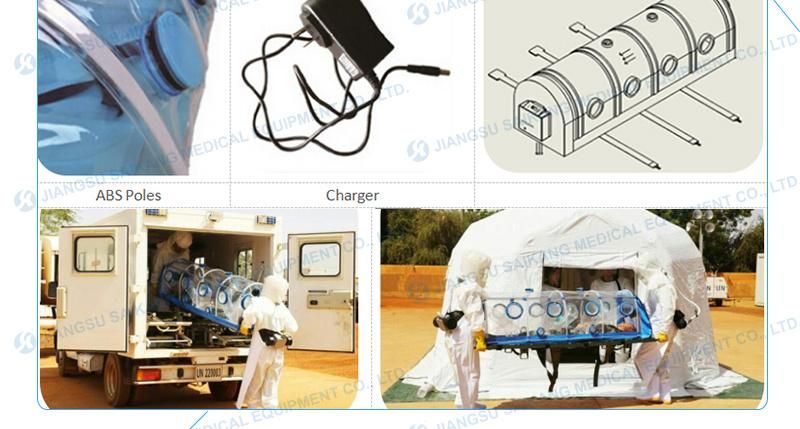

Accessories

Main chamber  1 pc

Disposable HEPA filter   4pcs

Negative generation system   1 pc

PVC gloves  20pcs

Battery and charger  1set
