Medical Supply

Expert Tibia Intramedullary Nail Titanium Surgical Implant Nail

Canwell Medical Co., Ltd.
  • Certification:CE, ISO9001
  • Disinfection:Disinfection
  • Color:Transparent
  • Application:Tibial
  • Material:Titanium
  • Certificate:ISO13485,ISO9001,Ce

Base Info

  • Model NO.:CanETN
  • Transport Package:Cartoon
  • Specification:Customized
  • Trademark:Canwell,Customized
  • Origin:Zhejiang
  • HS Code:9021100000
  • Production Capacity:10000,Month

Description

Basic Info.

Model NO. CanETN Transport Package Cartoon Specification Customized Trademark Canwell/Customized Origin Zhejiang HS Code 9021100000 Production Capacity 10000/Month

Product Description

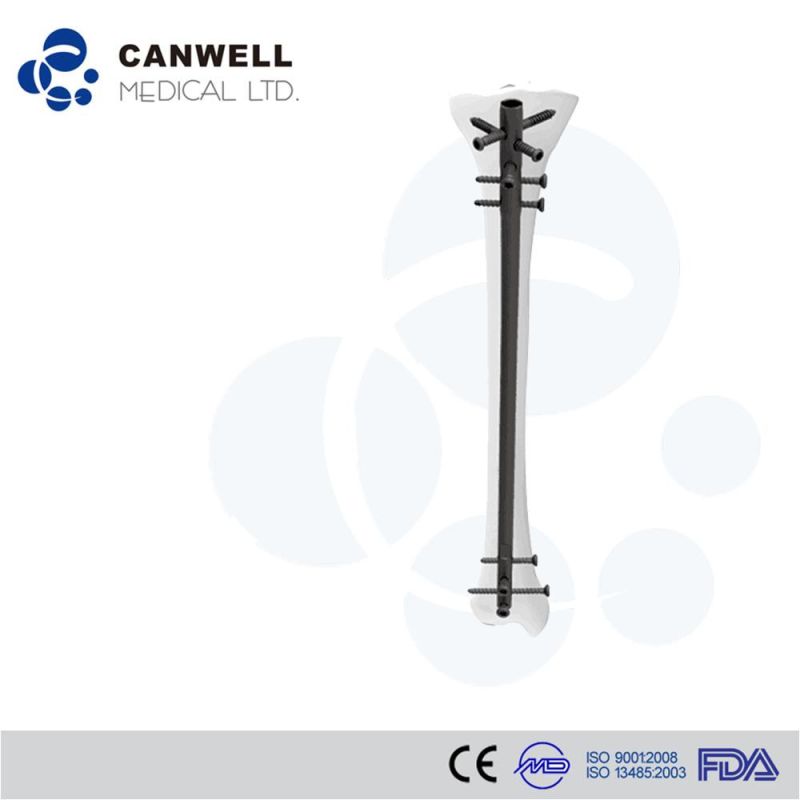

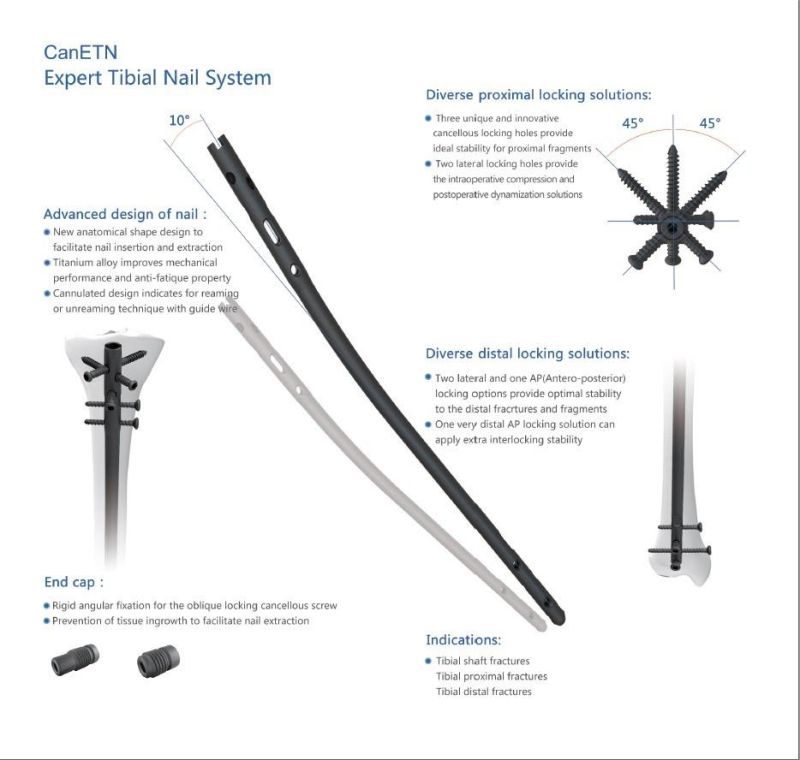

Expert Tibial Nail
1.  It can solve the tibial fracture, both in proximal, shaft and distal part.
2.  The nail has 4 diameter.   8mm, 9mm, 10mm, 11mm:

8mm&9mm: in the proximal part, there are 5 holes. 3 holes are using 5.0mm locking screw, and rest 2 holes are using 3.9mm locking screws. In the distal part, there are 4 holes, all can using 3.9mm locking screws. Altogether there are 9 holes, but the surgeons will choose several holes to implant the screw according to their demand.

10mm&11mm: in the proximal part, there are 5 holes. 3 holes are using 5.0mm locking screw, and rest 2 holes are using 4.9mm locking screws. In the distal part, there are 4 holes, all can using 4.9mm locking screws. Altogether there are 9 holes, but the surgeons will choose several holes to implant the screw according to their demand.




Expert Tibia Intramedullary Nail Titanium Surgical Implant Nail
Expert Tibia Intramedullary Nail Titanium Surgical Implant Nail

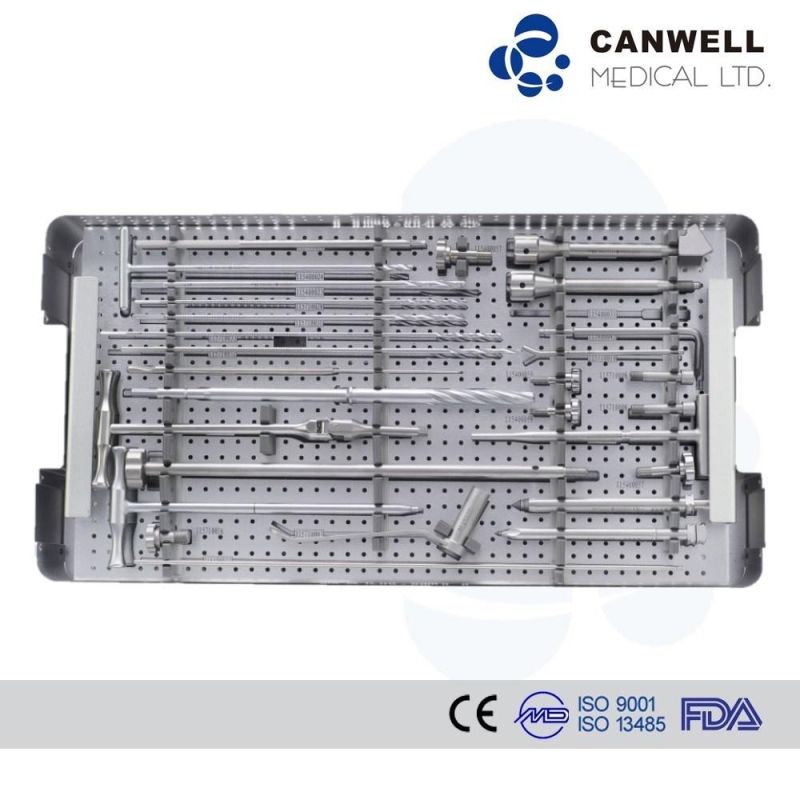

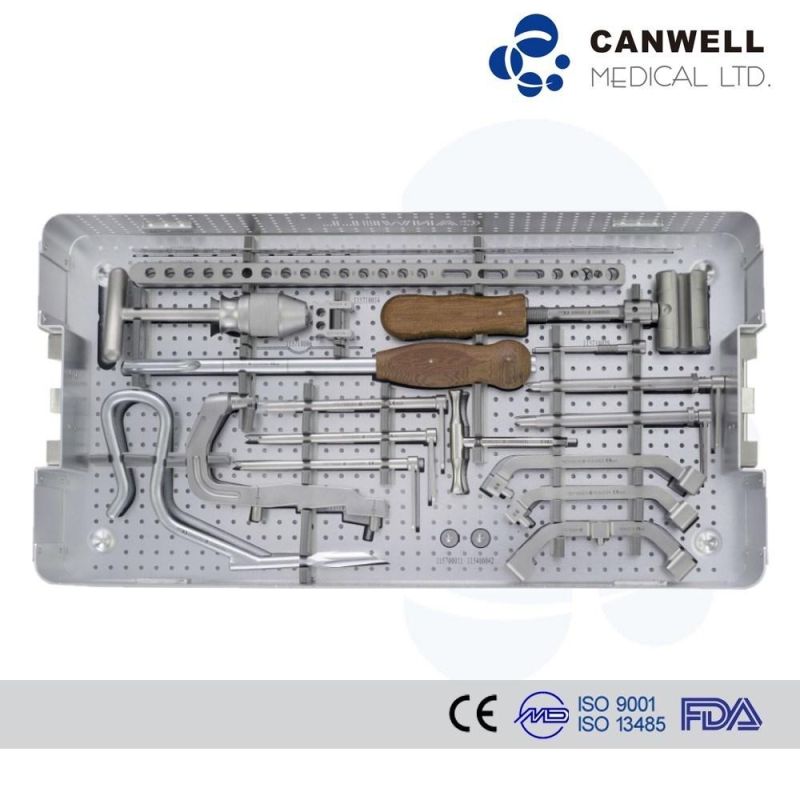

Instrument Set List

Expert Tibia Intramedullary Nail Titanium Surgical Implant NailExpert Tibia Intramedullary Nail Titanium Surgical Implant Nail
P.NDescriptionQty.
115400023Ø5.2Drill Bit1
115400024Flat Drill with T-Handle1
115400032Slotted Hammer1
115400033Guide Wire Ø3.2×4003
115400043Pin Wrench SW3/SW51
115400057Targeting Device Nut for Long Nail1
115400059Distal Outrigger Nut for Long Nail2
115500007Wrench for Connecting Nut1
115500032Universal Wrench with T-Handle1
115710001Radiographic Ruler1
115710002Cannulated Awl1
115710003Protection Sleeve1
115710004Cannulated Drill Bit1
115710005Cannulated Hole Punch1
115710007Insertion Handle1
115710008Connecting Nut2
115710009Driving Cap with Handle Adaptor1
115710034Extractor for Nail1
115710010Pin Wrench1
115710011Hammer Guide1
115710012Shaft1
115710013Location Shaft1
115710014Stabilization Spacer1
115710015Distal Outrigger1
115710016Distal Outrigger Nut1
115710017Protection Sleeve2
115710018Obturrator1
115710019Protection Drill Sleeve(φ4.3)2
115710020Protection Drill Sleeve(φ3.2)2
115710021Depth Gauge1
115710022T-handle1
115710023Proximal Aming Arm1
115710024Proximal Aming Arm for Cancellous Bone1
115710025Protection Sleeve1
115710026Drill Sleeve1
115710027Trocar1
115710028Drill Bit(Φ3.2×250)1
115710029Compression Bolt1
115710030Plug for End Cap1
115710031Drill Bit(Φ4.3×250)1
115710032Drill Bit(Φ4.3×300)1
115710033Drill Bit(Φ3.2×300)1
115710035Φ3.2 Drill Sleeve1
115712000Instruments Tray(CanETN)1
Expert Tibia Intramedullary Nail Titanium Surgical Implant Nail
Expert Tibia Intramedullary Nail Titanium Surgical Implant Nail
Expert Tibia Intramedullary Nail Titanium Surgical Implant NailExpert Tibia Intramedullary Nail Titanium Surgical Implant Nail

Q: Would you please give some information on shipping mode and charges?
A: Normally we send through courier, or post upon request from clients.

Q: Do you have ISO 9001, CE, or FDA approvals?

 A: Yes, we are an ISO 9001:2008 and EN ISO 13485:2012 Certified Company. We have FDA Registrations and CE mark for many of our products.

Q: What is the minimum order that we can place?
A: We expect your minimum orders to be least at US$1000. However, we understand that   customers need to place smaller samples orders in the beginning in order to test market our products . Samples against cost are available on request.

Q: Can I buy products not shown but similar to your catalogue?
A: Of course you can, just send us pictures or samples. But this takes a little longer time for delivery.

Q: Do you have stock for listed products, or they are newly produced?
A: Generally, we have stock for every listed products, which were produced monthly. But it depends on our sales condition. Better to ask our salesman for accurate inventory information.
