• Model NO.：100ML 150ML
• Transport Package：CIF Fob
• Specification：58*37*38
• Trademark：Qinkai
• Origin：China, Heze
• HS Code：9018390000
• Production Capacity：50000pieces,Every Day

Basic Info.

Model NO. 100ML 150ML Transport Package CIF Fob Specification 58*37*38 Trademark Qinkai Origin China, Heze HS Code 9018390000 Production Capacity 50000pieces/Every Day

Product Description

Supply Ability
Supply Ability:
1500000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Packing Info:
A : Unit PE bag
B : Unit Blister pack
C : Unit Paper plastic pack
D : Unit Transparent plastic bag
Port
Qingdao / Shanghai

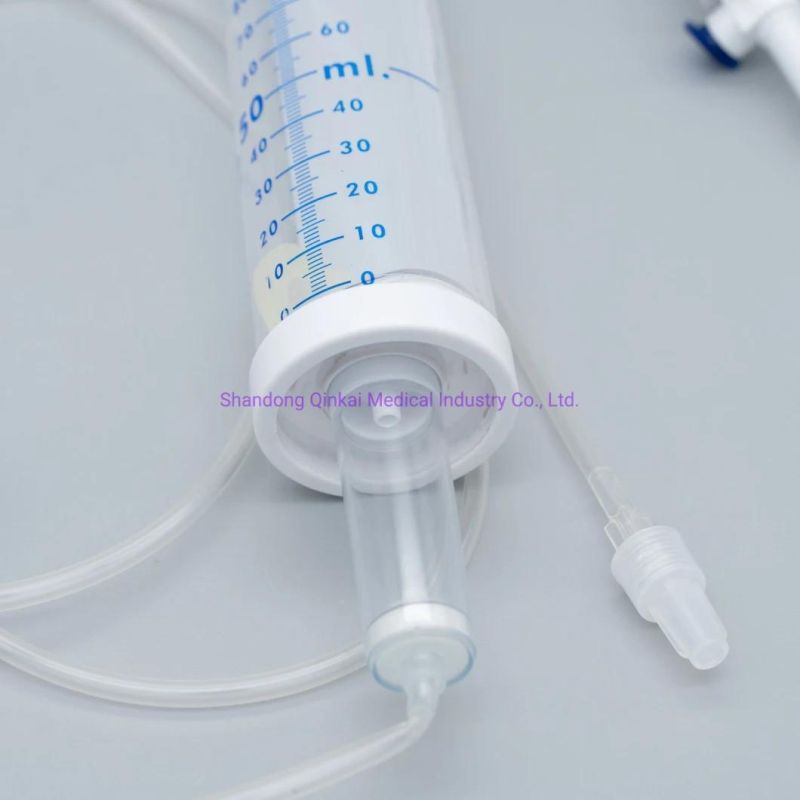

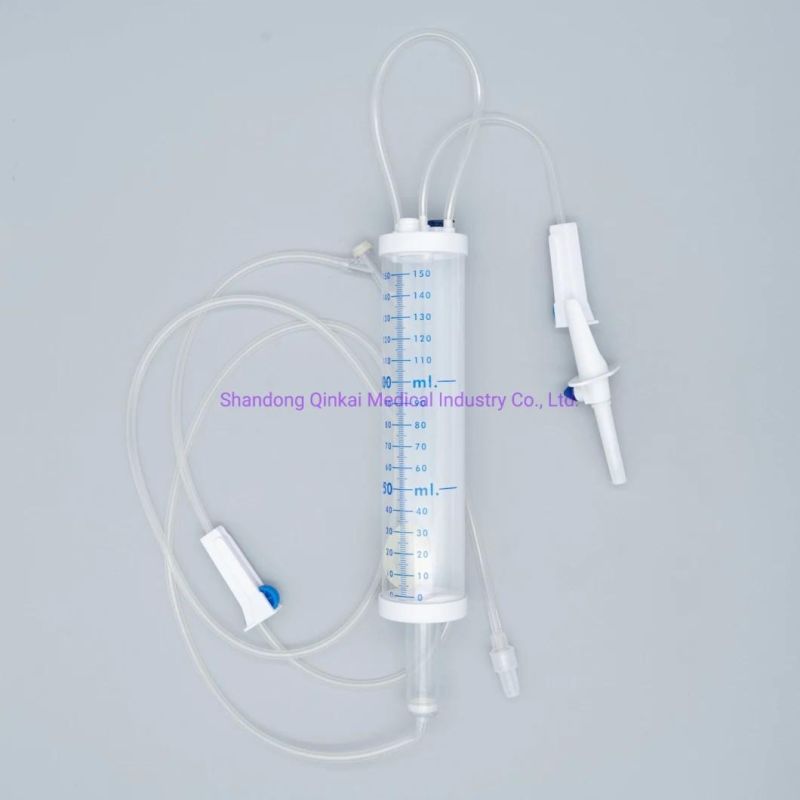

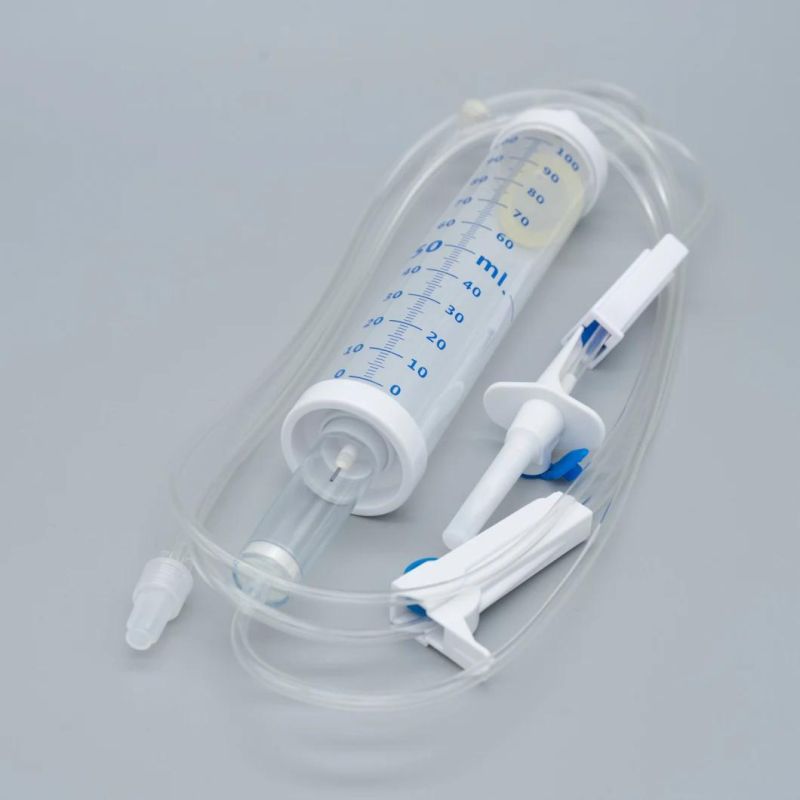

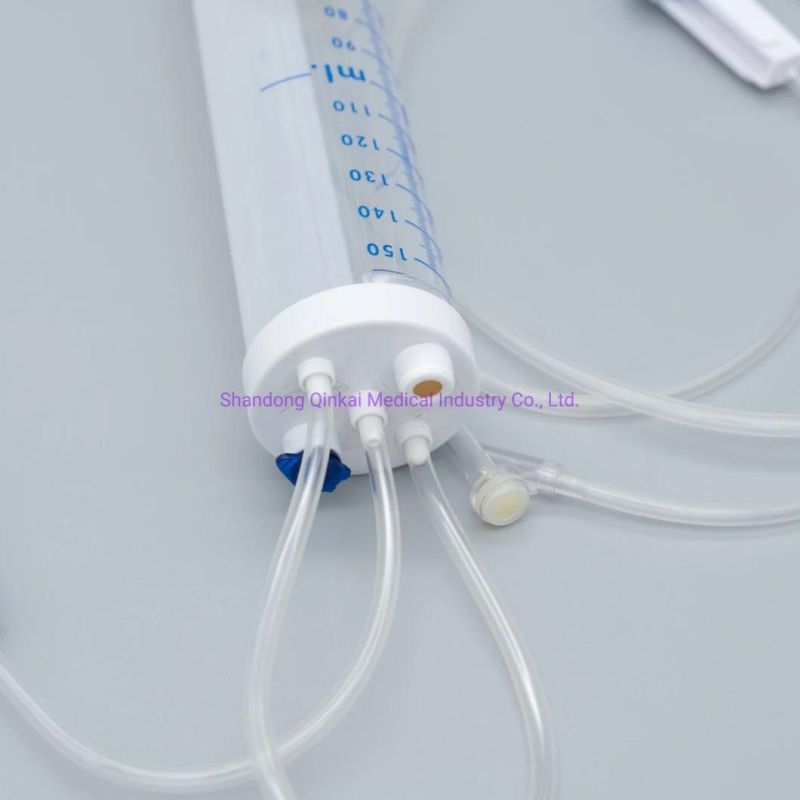

Infusion Set  with Burette 100ml/150ml



Structure: Spike cap, Spike, Air Vent, Drip chamber, Filter, Tube, Roller clamp,

Y Injection site with finger protector, Rotating Luer lock Connector

Features:

* With CE/ISO13485/ISO9001/SFDA/GMP/FSC

* Non toxic, Pyrogen-free, valid for 5 years

* OEM products available



Options:

1. With or without Air vented

2. With or without filter

3. Hard or soft drip chamber

4. 100ml chamber

5.  60drops=1ml

6. Transparent tube, elastic non-transparent tube, DEHP-FREE tube

7. Latex injection bulb, Latex injection cylinder, Latex-free bulb, Y-site

8. Luer slip or luer lock connector

9. Hypodermic needle or butterfly needle

10. With or without needle (with cap if without needle)



Product Standard:  ISO8536-4:2010, ENISO13485:2003/AC:2009, GB 8368-2005



Specification

Parts	Index	Material
Spike Cap	/	PE(polyethylene)
Spike	With air-vent,Wing	ABS
Drip Chamber	6ml	PVC DEHP-Free
Filter	Ø12.8 , Micron: 15um	Nylon
Predominant Tube	150cm ID/OD:3.1mm/4.1mm	PVC DEHP-Free
Roller Clamp	45mm/52mm	PE(polyethylene)
Injection site	Bulb type	LATEX-Free Synthetic rubber
Connector	Luer lock (with cap)	Polypropylene
Needle	21G/22G/23G	PP+Stainless steel



Operation Instruction



1. Open the individual packing and take out the infusion set

2. Firmly close roller clamp

3. Insert plastic spike into container

4. Press drip chamber to fill half of it

5. Open roller clamp and expel air bubbles

6. Close roller clamp again

7. Apply needle into patients vein

8. Adjust flow rate by roller clamp

9. Open air inlet if use glass container and close the air inlet if use soft container

10. Dispose properly as medical waste after use

Cautions:



1. Check the batch number and validity before use.



2. Tighten the needle before use



3. It is strictly prohibited to use if the single packing damaged or needle cap drop off.



4. For single use only, use immediately after unsealed, destroy after use. It is strictly prohibited to reuse.
