• Model NO.：A501-2
• Transport Package：by Sea and Air
• Trademark：Hisern Medical
• Origin：China
• Production Capacity：100, 0000

Basic Info.

Model NO. A501-2 Transport Package by Sea and Air Trademark Hisern Medical Origin China Production Capacity 100, 0000

Product Description

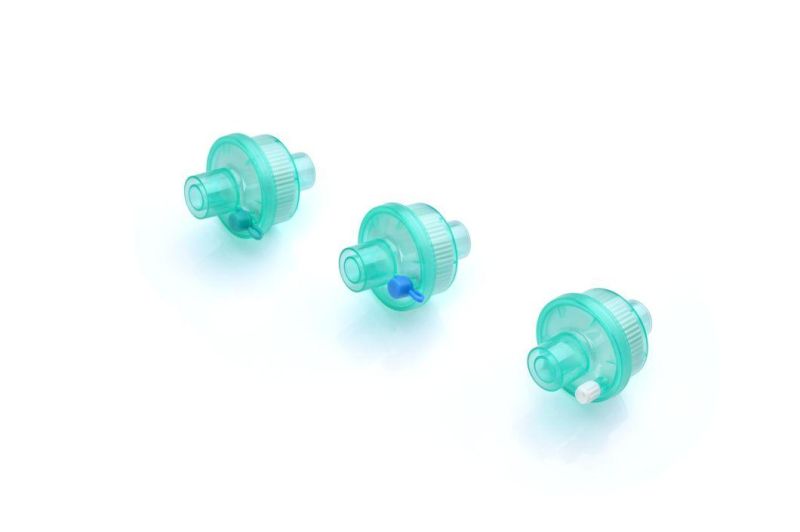

Heat and Moisture Exchanger Filter (HMEF) combines the efficiency of dedicated breathing filters with optimum moisture return.

Features:
• Low dead space, to minimize dangers associated with re-breathing carbon dioxide.
• Lightweight, to reduce additional heavy on the tracheal connection.
• Maximizes the humidity of inspired gases.
•ISO, CE&FDA 510K

Parameters:

Description	Heat Moisture Exchanger Filter (HMEF)
Humidity Output	31mg/H2O @ VT 500ml
Filtration Efficiency	BFE 99.9-99.999% VFE 99-99.99%
Resistance @ 30 LPM	<1.5cm H2O (BFE 99.999%,VFE99.99%) <0.8cm H2O (BFE99.9%,VFE99%)
Resistance @ 60 LPM	<3.1cm H2O (BFE 99.999%,VFE99.99%) <1.8cm H2O (BFE99.9%,VFE99%)
Dead space	45ml
Tidal Volume Range	150-1500ml
Connections	22M/15F-22F/15M
Gas Monitoring Luer Port with retainer strap	Yes
Weight	30g

REF	Specification	Packing	Carton size	G.W	Shelf Life
A501-2 Eco	Adult,BFE99.9%,VFE99%	100pcs/carton	37.5*30*34.5cm	Appro.5KG	3 years
A501-2	Adult,BFE99.99%,VFE99.9%	100pcs/carton	37.5*30*34.5cm	Appro.5KG	3 years
A501-2 Pro	Adult,BFE99.999%,VFE99.99%	100pcs/carton	37.5*30*34.5cm	Appro.5KG	3 years
