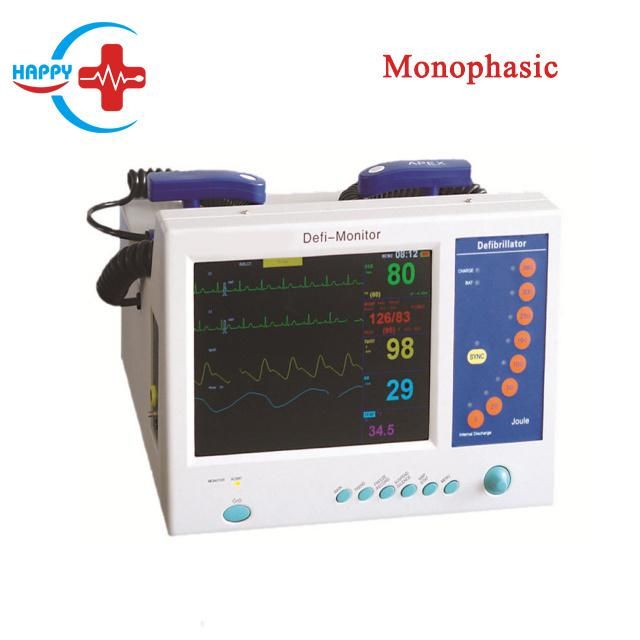

Hc-C019A Good Function Portable Defibrillator Monitor with Monophasic /Biphasic
Guangzhou Happycare Electronics Co., Ltd.- Type：Patient Monitor
- Transport Package：Carton
- Origin：China
Base Info
- Model NO.：HC-C019A
- Production Capacity：10000PCS,Month
Description
(1) Defibrillator type:Manual,synchronized,asynchronized
(2) Energy accuracy:∠+1%
(3) Energy selection:0, 20, 50, 100, 160, 250, 300, 360 joules (nominal at a resistance of 50)
(4) Charging time:Maximum 10 seconds to 360 Joules
(5) Standard Adult/Pediatric Paddles:Reusable external adult paddles(pediatric paddles integrated)
Power requirements
(a) AC Power supply:100V~240V,50Hz/60 Hz
(b) Vehicle Voltage(Option):DC 12V
Internal Battery Backup
(1)Battery type Rechargeable lead-acid battery (12V 2.0Ah X2)
(2)Charging time Time-Minimum of 4 hours for full charging
(3)Battery charging During AC Power Supply operation of the device.
(4)Charging /Low Battery Indication Red LED
(5)Battery Capacity 100% of the battery will provide 120-min of monitoring; and 35 discharges at 360 joules.
Display
-LCD Dimensions 10.4 inch
-Type High resolution true-color graphic LCD
ECG
S-T segment analysis: -2.0~2.0mv
Arrhythmia analysis: yes
Protection: With stand 4000vAc/50Hz voltage in isolation and work against electrosurgical knife and defibrillation
Respiration
Measurement method: Thoracic impedance
NIBP
Working mode: Manual/Automatic/stat
Method: Automatic oscillation
Cuff type: standard Adult; optional Pediatric/Neonatal
Temperature
Measurement range 20~45ºC
Resolution 0.1ºC
Pulse Oximetry(spO2)
Pulse range
Pulse range: 0-255bpm
Standard parameter & configuration
ECG/ RESP/SPO2/TEMP/PR/NIBP/DEFIBRILLATOR
Optional parameter
Recorder, Li-ion battery (11.1V 4Ah X2)
Display :spo2 value, pulse histogram, waveform, Pulse
Range: 0~99%for adult, pediatric and neonatal patients
Probe :standard adult finger clip
optional pediatric Y-type clip and neonatal wrap

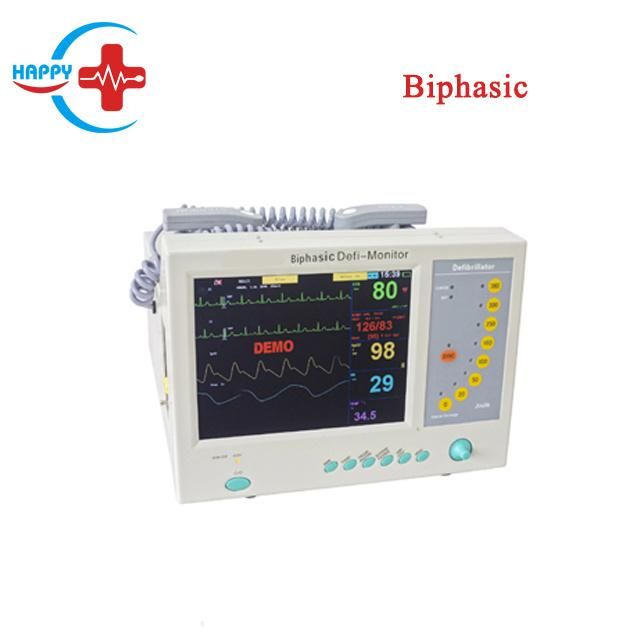

Biphasic Features:
Technical specifications
DEFIBRILLATOR.
(1) Defibrillator type:Manual, Synchronized, Asynchronized,
(2) Energy accuracy:∠+1%
(3) Energy selection:0, 20, 50, 100, 160, 250, 300, 360 joules (nominal at a resistance of 50)
(4) Charging time:Maximum 10 seconds to 360 Joules
(5) Standard Adult/Pediatric Paddles:Reusable external adult paddles(pediatric paddles integrated)
Power requirements
(a) AC Power supply:100V~240V,50Hz/60 Hz
(b) Vehicle Voltage(Option):DC 12V
Internal Battery Backup
(1)Battery type : Rechargeable lead-acid battery (12V 2.0Ah X2)
(2)Charging time:Time-Minimum of 4 hours for full charging
(3)Battery charging:During AC Power Supply operation of the device.
(4)Charging /Low Battery Indication:Red LED
(5)Battery Capacity:100% of the battery will provide 120-min of monitoring; and 35 discharges at 360 joules.
Display
-LCD Dimensions:10.4 inch
-Type:High resolution true-color graphic LCD
ECG
S-T segment analysis: -2.0~2.0mv
Arrhythmia analysis: yes
Working mode: Manual/Automatic/stat
Method: Automatic oscillation
Cuff type: standard Adult; optional Pediatric/Neonatal
Temperature
Measurement range 20~45ºC
Resolution 0.1ºC
Protection: With stand 4000vAc/50Hz voltage in isolation and work against electrosurgical knife and defibrillation
Respiration
Measurement method: Thoracic impedance
NIBP
Pulse Oximetry(spO2)
Display :spo2 value, pulse histogram, waveform, Pulse
Range: 0~99%for adult, pediatric and neonatal patients
Probe :standard adult finger clip
optional pediatric Y-type clip and neonatal wra
Pulse range
Standard parameter & configuration
Pulse range: 0-255bpm
ECG/ RESP/SPO2/TEMP/PR/NIBP/DEFIBRILLATOR
Optional parameter
Recorder, Li-ion battery (11.1V 4Ah X2)
Packaging & ShippinOur ServicesCompany InformationFAQ1. How to place order of HC-C019A Good Function Portable Defibrillator monitor with Monophasic /Biphasic?
A: Firstly we confirm product details and then send the Proforma Invoice,
You make payment to us through Alibaba Trade Assurance or T/T, Western Union or MoneyGram,
after we confirm your payment then ship the product to you once finished production.
2. For HC-C019A Good Function Portable Defibrillator monitor with Monophasic /Biphasic
product, What's the minimum order quantity (MOQ)?
A: For disposable material,We have our own MOQ,For our HC-C019A Good Function Portable Defibrillator monitor with Monophasic /Biphasic , our MOQ:1pc,
3. What is your warranty?
A: For most products the warranty is for 12 months, some products we provide 18 months warranty.
For HC-C019A Good Function Portable Defibrillator monitor with Monophasic /Biphasic
, we provide 12 months warranty.
4. What's your delivery time?
A: Generally it is 5 working days if goods in stock. within 10 working days if the goods need production, And also the delivery time depands on quantity. For HC-C019A Good Function Portable Defibrillator monitor with Monophasic /Biphasic , the delivery time is 10 working days .
5. How to ship the product?
A: The shipping way normally depand on your quantity,total CBM and weight.
We have our own shipping company to provide best shipping cost and efficient way.
