• Logo Printing：With Logo Printing
• Color：Blue,Whiter or Customized
• Hardness：60A~80d
• Size：Od:0.8mm~11.0mm; ID:0.2mm~10.0mm
• Wall Thickness：0.05mm~3.0mm

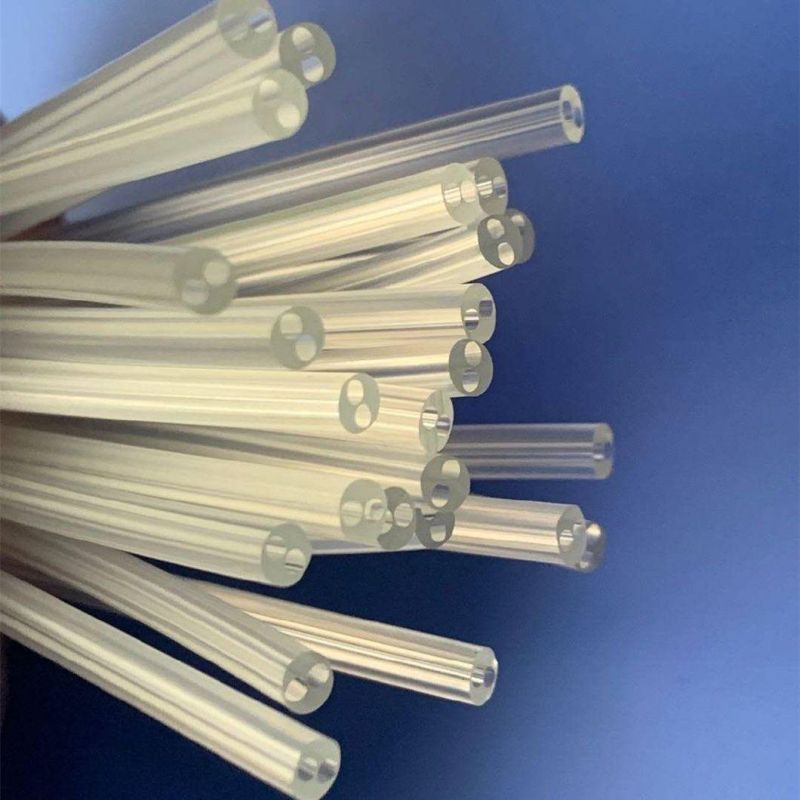

• Shape：Multi-Lumen
• OEM：Accept
• Safety Standard：Medical Grade
• Transport Package：PP Bag, Master Carton,Pellet
• Specification：0.3mm and 16.0mm
• Trademark：BOVA
• Origin：China
• HS Code：9018909000
• Production Capacity：50000,Week

Basic Info.

Logo Printing With Logo Printing Color Blue/Whiter or Customized Hardness 60A~80d Size Od:0.8mm~11.0mm; ID:0.2mm~10.0mm Wall Thickness 0.05mm~3.0mm Shape Multi-Lumen OEM Accept Safety Standard Medical Grade Transport Package PP Bag/ Master Carton/Pellet Specification 0.3mm and 16.0mm Trademark BOVA Origin China HS Code 9018909000 Production Capacity 50000/Week

Product Description

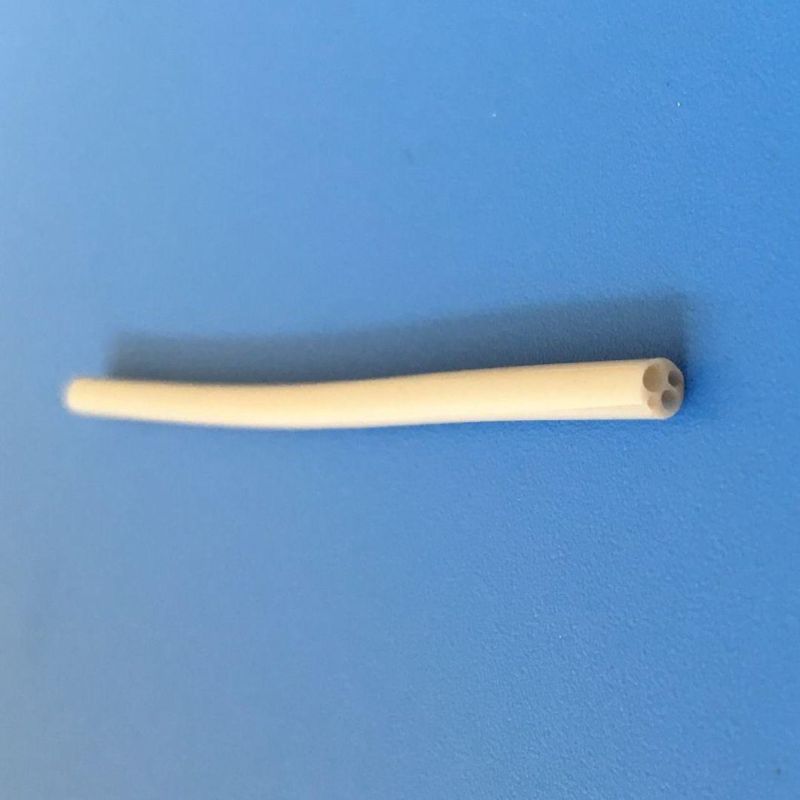

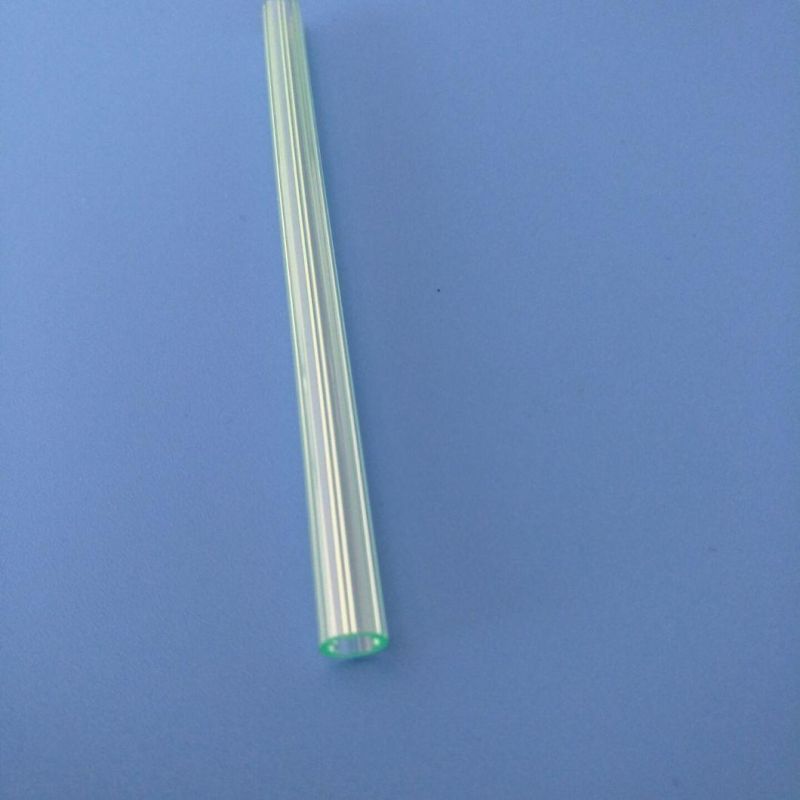

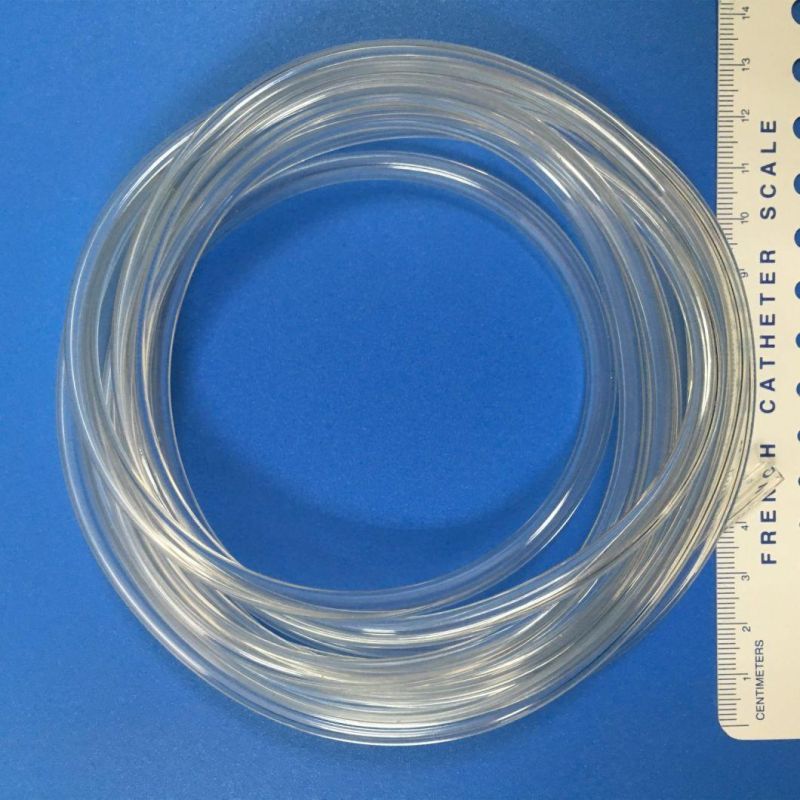

PA medical Tube (Nylon)
*PA(Nylon) material characteristic: high strength, anti-pressure, anti-wear, low friction coefficient and excellent chemical resistance, So the catheters are hi-tensile strength, hi-toughness and hi-bending resistant characteristic which made of PA material, And the most important of PA medical catheter is the strongest anti-pulse strength, PA divided into Homo and Copolymer.
*Homo: Mostly used at flexible medical catheter which meet the requirements of FDA for food from lower DBP to the higher DBP.
*Copolymer: Modified grade anti-pulse, There are not only promotion the toughness but also improve the flexibleness.
The catheter's processing scope:
Tube size: OD:∮0.30mm~14.00mm; ID: ∮0.10mm~13.50mm
Tube color: Assignable
Develop condition: Transparency/ Translucent;
Range of application: Anesthesia catheter; external Sheath catheter; delivery Sheath, and other precision catheters.
Anti-static PA(Nylon) material: Spanning the surface resistivity spectrum from antistatic, through conductive to EMI Shielding.








Material Characteristic:

	HDPE	LDPE	PA12	PEBAX	TPU	PP
Density	0.96	0.93	1.15	1.01	1.2-1.25	0.88
Rigidity	60D-65D	48D-53D	68D-70D	23D-72D	60A-75D	60-69D
Max. Operation temperature	54ºC	54ºC	80ºC	80ºC	80~100ºC	80~100ºC
Min. Operation temperature	-40ºC	-40ºC	-40ºC	-20ºC	-35ºC	-20ºC
Tenacity	Commonly	good	commonly	commonly	Excellent	commonly
Color	Milk White	Translucent	Translucent	Transparent	Transparent	Translucent
Reprocessing performance Characteristics	Commonly	Easy	Easy	Easy	Easy	Commonly
Chemical Resistance	Good	Good	Good	Good	Commonly	Good
Insulation	Good	Good	Good	Good	Good	Good
Biocompatibility	Good	Good	Excellent	Excellent	Excellent	Good
Medical Grade Attestation	Yes	yes	yes	yes	yes	yes

Our factory:
Kunshan Bova Plastic Co., Ltd. located in No.869 Qinhe Road Zhangpu Town Kunshan City since 2008, We are professional manufactures of various precision medical catheter with Extrusion technology, Our company was founded by a group of senior engineers who are experienced in high polymer material and precision  extrusion technology.

Bova is an ISO9001 Certified manufacture,  We have been specializing in design and manufacture extrusion medical catheters, secondary operation and catheters customized services. Our products includes(extrusion): Single/Double-lumen, Multi-lumen, Special configuration catheter, Co-Extrusion catheter, Adjustable variable diameter tube, composite tube, Braided tube, Special section tube, Thin wall tube, Micro-bore tube ,overall radiopaque, radiopaque line etc. the  materials are diverse including:TPU,PE,PP,PVC,PEBAX,PA,PC,PET,ABS,PLA. Extrusion tube accuracy can be controlled at ± 0.02mm, and the wall thickness can be below 0.07mm. All our products are producing in the Class 100000 clean-room which certified by Suzhou Drug Administration.
