Nail Supplies Femoral Interlocking Intramedullary Nails Orthopedic Implant

Canwell Medical Co., Ltd.
  • Certification:FDA, ISO, CE, ISO9001
  • Disinfection:Without Disinfection
  • Color:Transparent
  • Application:Trauma
  • Material:Titanium
  • Certificate:ISO13485, ISO9001, Ce

Base Info

  • Model NO.:CanPFN
  • Transport Package:Cartoon
  • Specification:170, 200, 240mm
  • Trademark:Canwell,Customized
  • Origin:Zhejiang
  • HS Code:9021100000
  • Production Capacity:1000,Month

Description

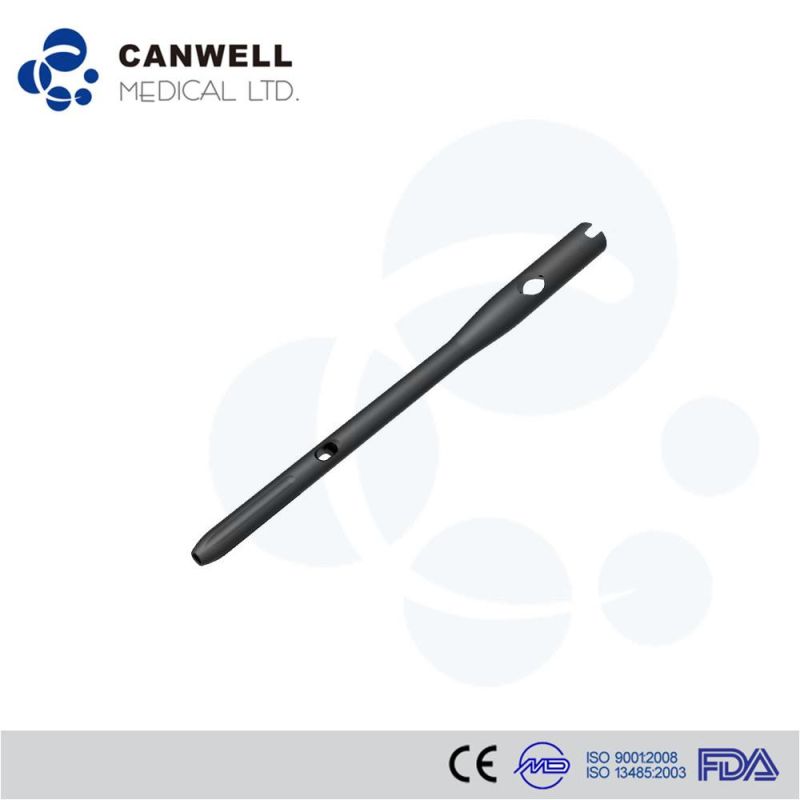

Product NameNail supplies Femoral interlocking intramedullary nails orthopedic implantMaterialThe CanPFN are made of Titanium alloy.ColorCustomizedStandard ISO 13485,ISO9001,QSR820,CEIndicationStandard PFN(170mm-240mm)
- Petrochanteric fractures(31-A1 and 31-A2)
- Intertrochanteric fractures(31-A3)
- High subtrochanteric fractures(32-A1)

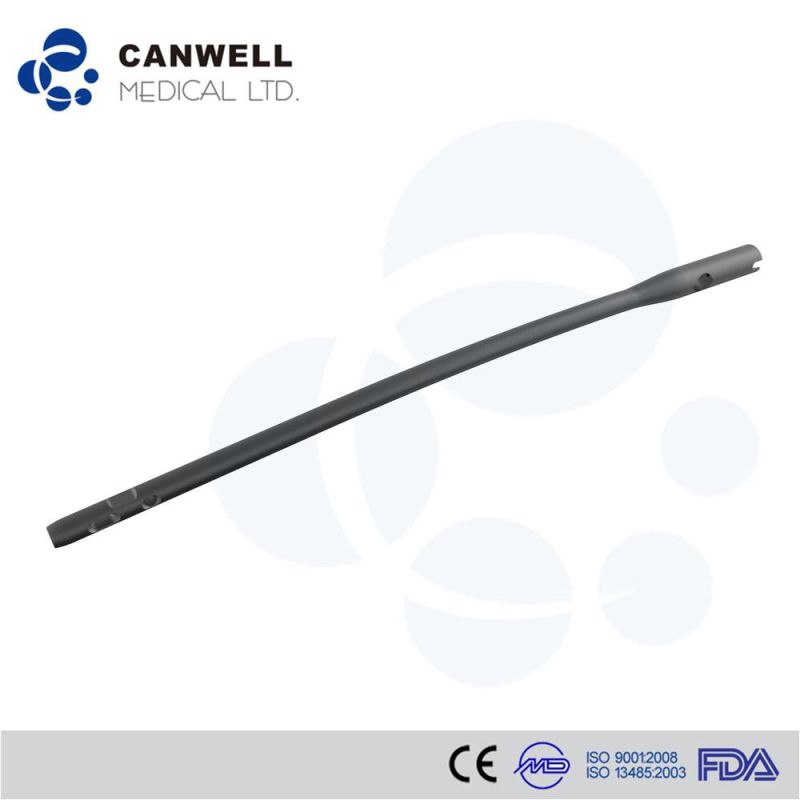

Extended PFN(length 360mm-420mm)
- Low and extended subtrochanteric fractures
- Ipsilateral trochanteric fractures
- Combination fractures(in the proximal femoral)
- Pathological fracturesFeatures and Benefits:--Two functions achieved : anti-rotation and stable fixation
--Two interlocking options:
a. Helical blade: fill interspace to reduce bone loss.

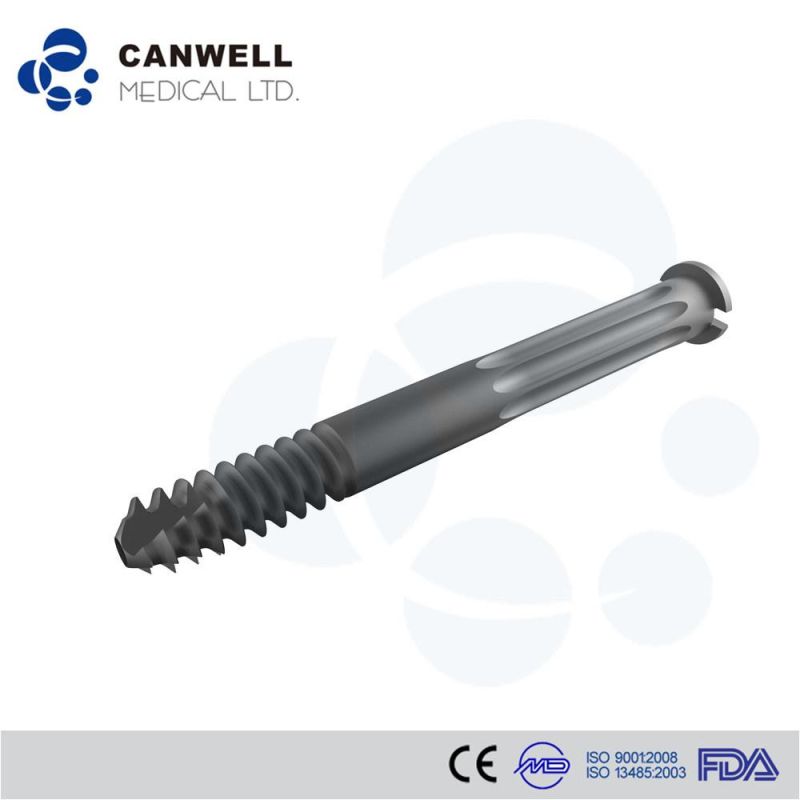

b. Lag screw: offer better compression locking effect
--Long nail tip and flutes design to prevent stress concentration
- Medial-lateral angle of 5°.
--Inner thread design on the end of the nail makes easier for nail extracting.

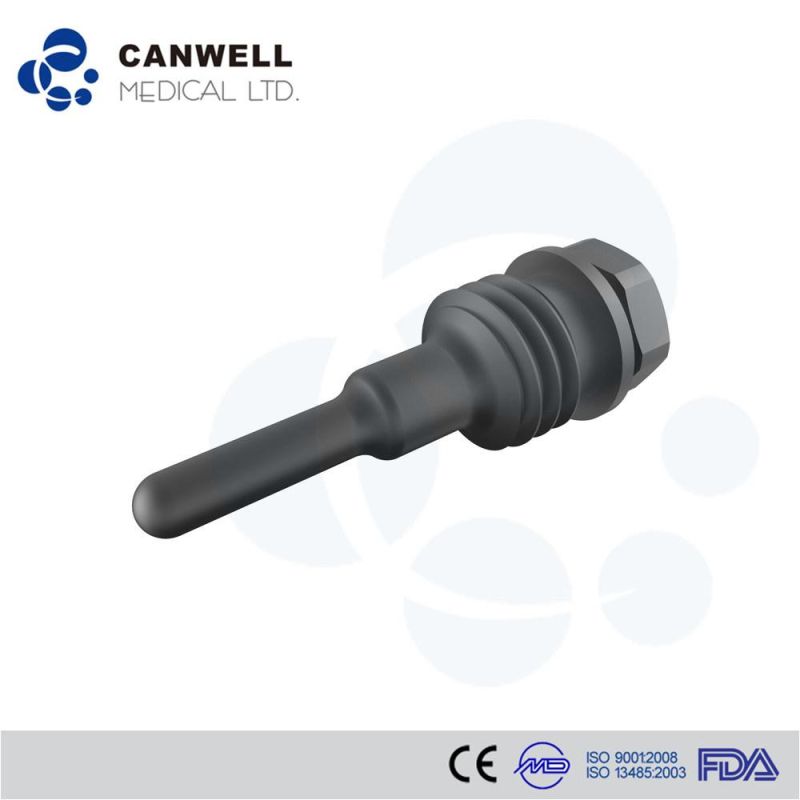

--End cap with different heights.Product design philosophy:*Biomechanical stability fixation
*Minimally invasive operation technologyNail Supplies Femoral Interlocking Intramedullary Nails Orthopedic Implant
Nail Supplies Femoral Interlocking Intramedullary Nails Orthopedic Implant
Nail Supplies Femoral Interlocking Intramedullary Nails Orthopedic Implant
Nail Supplies Femoral Interlocking Intramedullary Nails Orthopedic Implant
Nail Supplies Femoral Interlocking Intramedullary Nails Orthopedic Implant

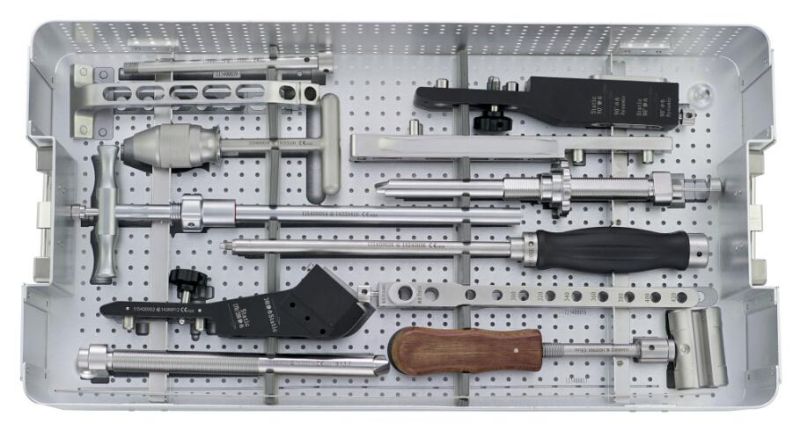

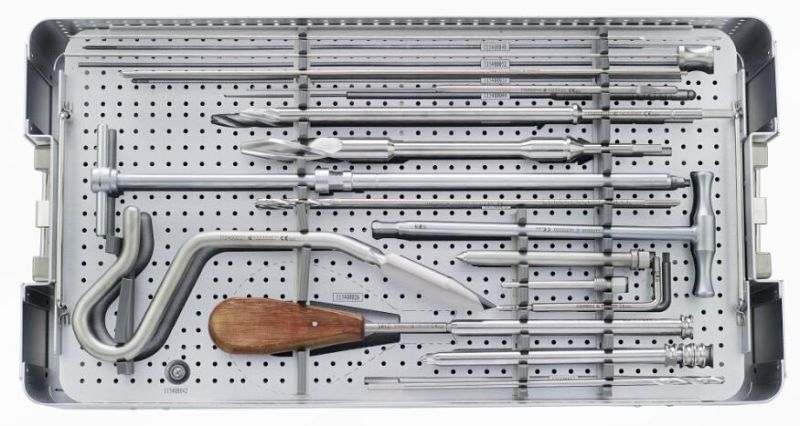

Instruments for CanPFN
DescriptionQty.
Hexagonal Solid Screwdriver Length 248mm1
Insertion Handle1
Proximal Aiming Arm1
Buttress Nut for Proximal Aiming Arm2
Protection Sleeve for distal locking2
Obturator for Distal Locking2
Trocar for Distal Locking1
Compression Nut1
Protection Sleeve for blade1
Protection Sleeve for lag screw1
Obturator for Blade1
Obturator for Lag Screw1
Protection Sleeve for lag screw1
Trocar1
Connecting Nut1
Aiming Arm for distal locking1
Distal Aiming Connecting Shaft1
Distal Targeting Device for Long Nail1
Targeting Device Nut for Long Nail1
Distal Outrigger1
Distal Outrigger Nut for Long Nail1
U-shaped Stabilizing Spacer1
Location Shaft1
Location Sleeve1
Handle Connecting Nut1
Universal Chunk with T-Handle1
Radiographic Ruler1
Protection Sleeve1
Drill Sleeve1
Ø5.2Protection Drill Sleeve1
Temporary End Cap for the lag screw1
Obturator1
Ø5.2Drill Bit1
Flat Drill with T-Handle1

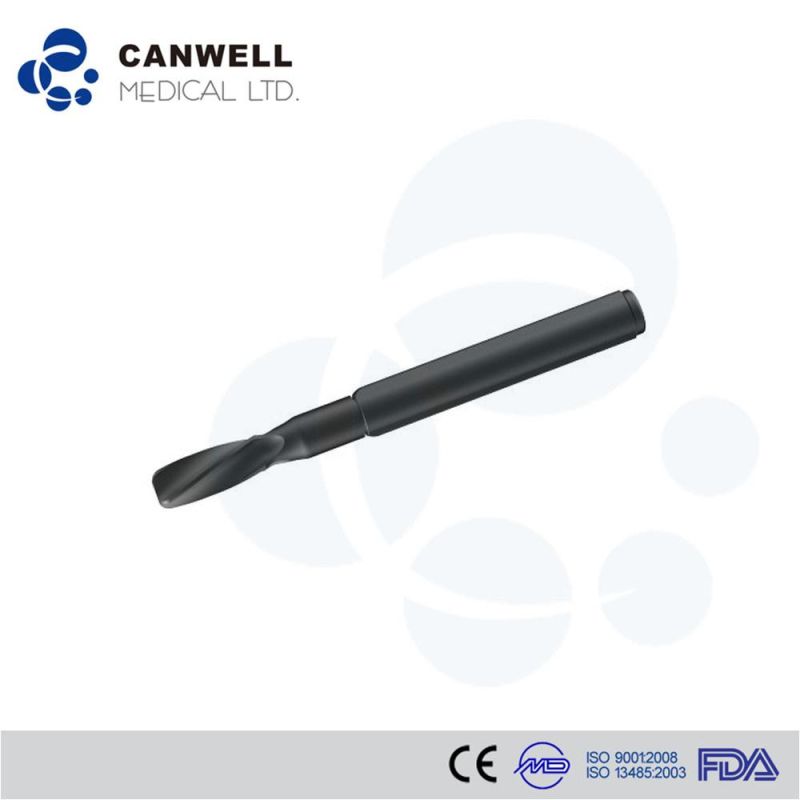

Proximal Reamer1
Awl1
Impactor1
Quick Connection T-Handle1
Ratchet Wrench for Nut, hexagonal1
Slotted Hammer1
Guide Wire Ø3.2×4005
Depth Gauge for Guide Wire Ø3.21
Cannulated Drill Bit for cortex boneØ10.6/Ø3.21
Cannulated Drill Bit with limitØ10.6/Ø3.21
Fixation Sleeve  SW4.5/φ3.21
Screwdriver for PFN Blade1
Extractor Connection shaft for blade1
Counter-torque Wrench for blade1
φ4.3 Drill Bitφ4.3/300mm3
Pin Wrench SW3/SW51
Depth Gauge for Locking screw1
Screwdriver,hexagonal SW3.51
Wrench with T-Handle1
Extractor for Nail M81
Guide Wire with Hook φ2.81
Cannulated Screwdriver for end cap φ2.8/SW4/SW111
Cannulated Wrench for end cap SW111
Extractor for Blade SW4.5/φ3.21
Cleaning Wire1
Lag Screw Holding shaft1
Wrench shaft for Lag Screw1

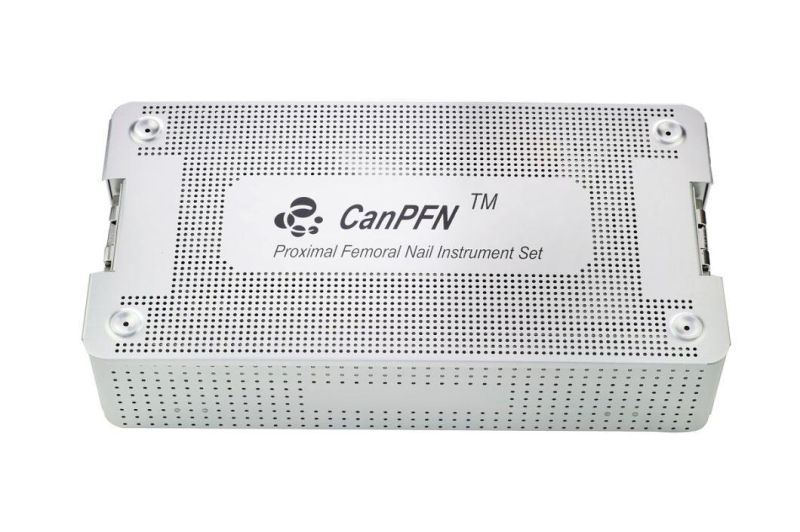

Instrument Tray1

Nail Supplies Femoral Interlocking Intramedullary Nails Orthopedic Implant
Nail Supplies Femoral Interlocking Intramedullary Nails Orthopedic Implant
Nail Supplies Femoral Interlocking Intramedullary Nails Orthopedic Implant
Nail Supplies Femoral Interlocking Intramedullary Nails Orthopedic Implant
FAQ:

Q: Trading company or manufacturer?
A: We are manufacturer since 1994. Our location is in Jinhua, Zhejiang Province, East China.
     2 hours by high-speed train from Shanghai.

Q: How's quality? Any Certificate? Regions of sales?
A: Our products are approved by CE/ISO13485.
     At present our main overseas markets are Asia, South America and Europe.

Q: Regional Distribution?
A: Yes we are looking for and welcome distribution.
     Please contact us for discussion if you are interested to become our distributor.

Q: How long is delivery time?
A: Generally 7-15 days if stock available and 30-45 days if regular production needed.
    Depending on order quantity, product type, and other order factors and requirements.

Q: Samples available? Free or extra ?
A: We can accept sample order. With extra price.

Q: Terms of payment ?
A: T/T.

Q: Any OEM service?
A:  We can offer OEM service. Products can be made-to-order and with special requirements.
