• Logo Printing：With Logo Printing
• Color：Nature,Blue,Whiter or Customized
• Hardness：60A~80d Shore
• Od：0.3mm~15.0mm;
• Wall Thickness：0.1mm~0.05mm
• ID：0.2mm~14.5mm
• Radiopacity：Balium Sulphate
• Size：Customized
• Tolerance：+,-0.05mm
• Safety Standard：Medical Grade
• Transport Package：Double Layer PE Bag
• Specification：0.3mm and 16.0mm
• Trademark：BOVA
• Origin：China
• HS Code：9018390000
• Production Capacity：50000,Week

Basic Info.

Logo Printing With Logo Printing Color Nature/Blue/Whiter or Customized Hardness 60A~80d Shore Od 0.3mm~15.0mm; Wall Thickness 0.1mm~0.05mm ID 0.2mm~14.5mm Radiopacity Balium Sulphate Size Customized Tolerance +/-0.05mm Safety Standard Medical Grade Transport Package Double Layer PE Bag Specification 0.3mm and 16.0mm Trademark BOVA Origin China HS Code 9018390000 Production Capacity 50000/Week

Product Description

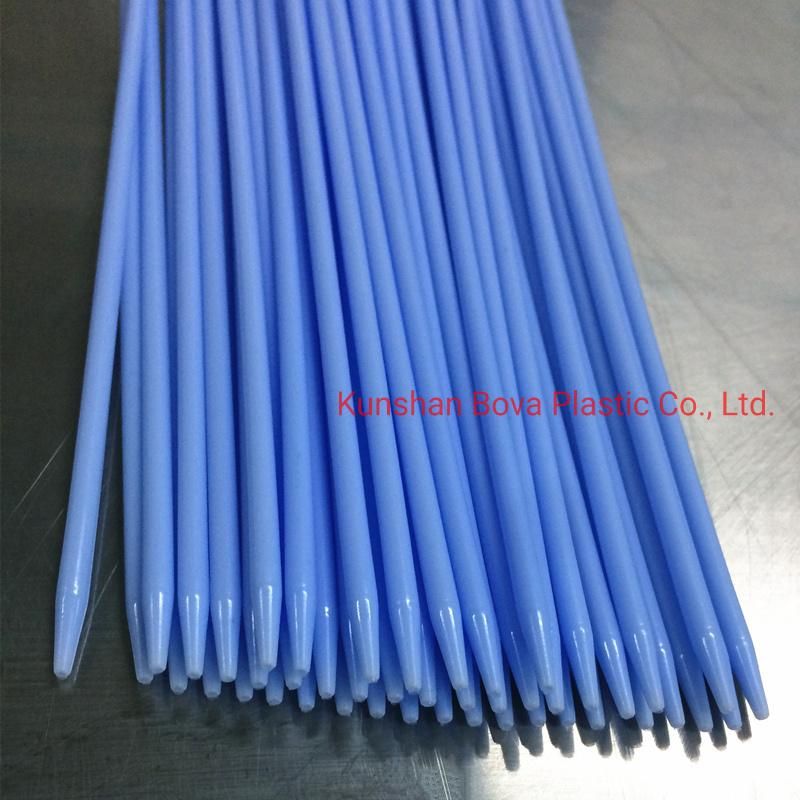

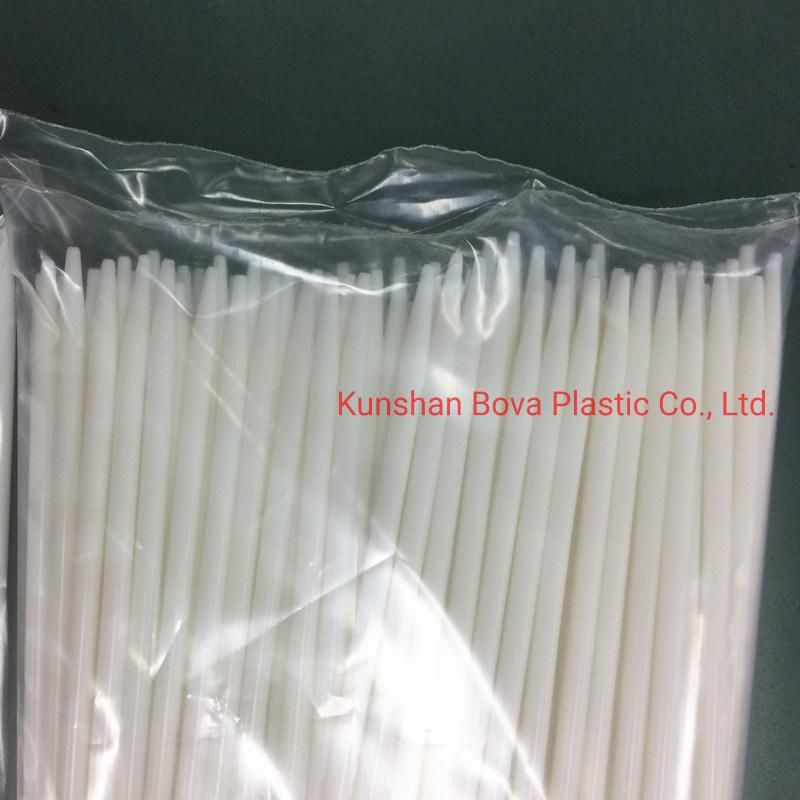

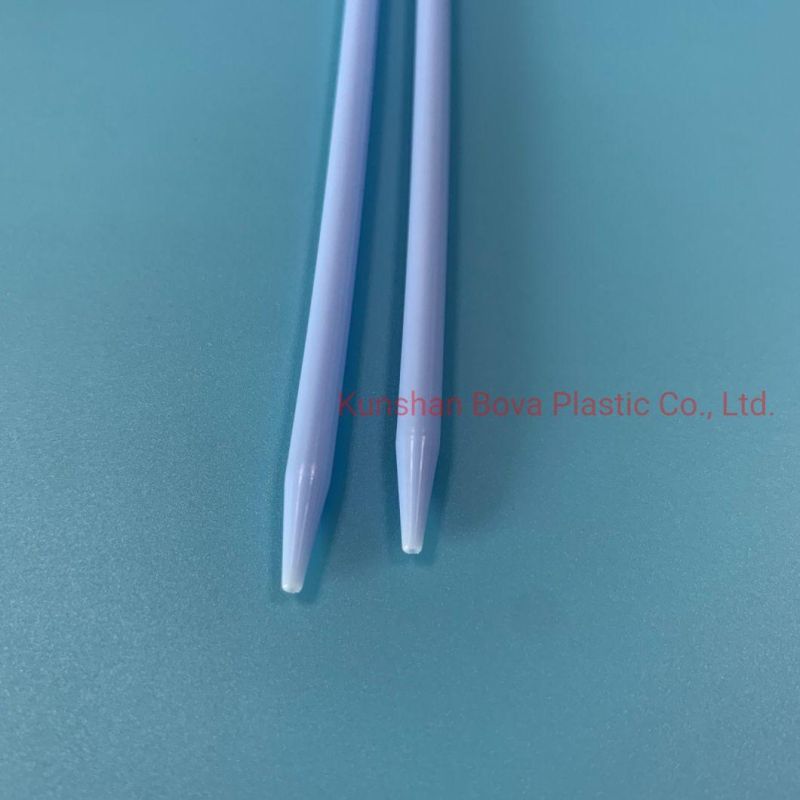

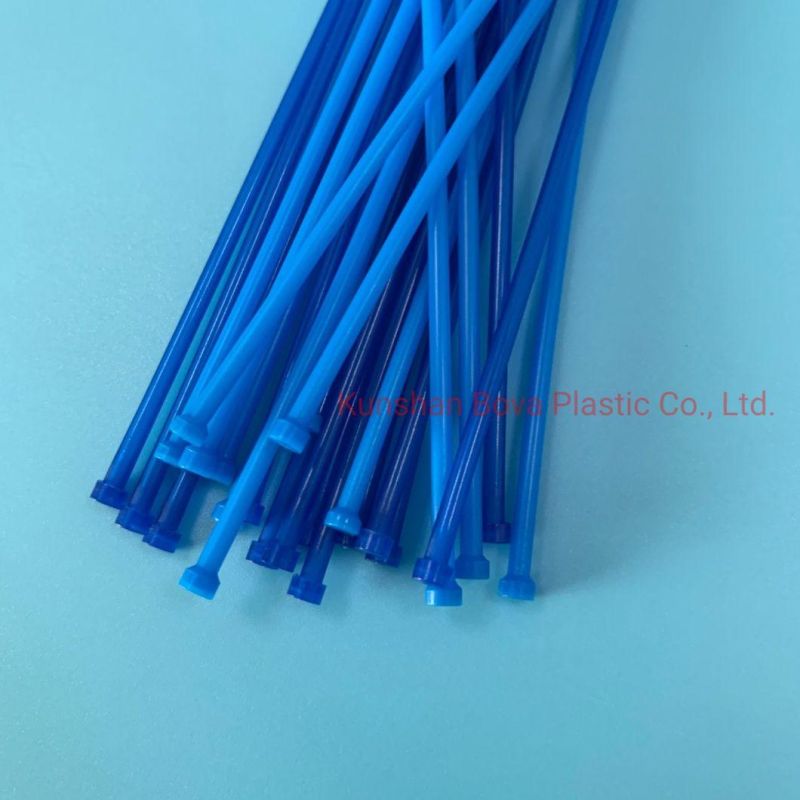

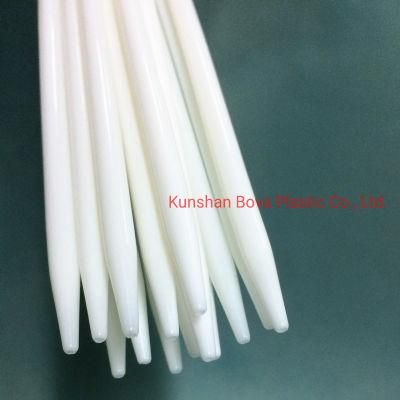

PU/TPU/HDPE/PEBAX Material Customized Dilator Catheter with Tip Forming
BOVA PROVIDES CUSTOM-MADE COMPONENTS FOR MEDICAL DEBVICES

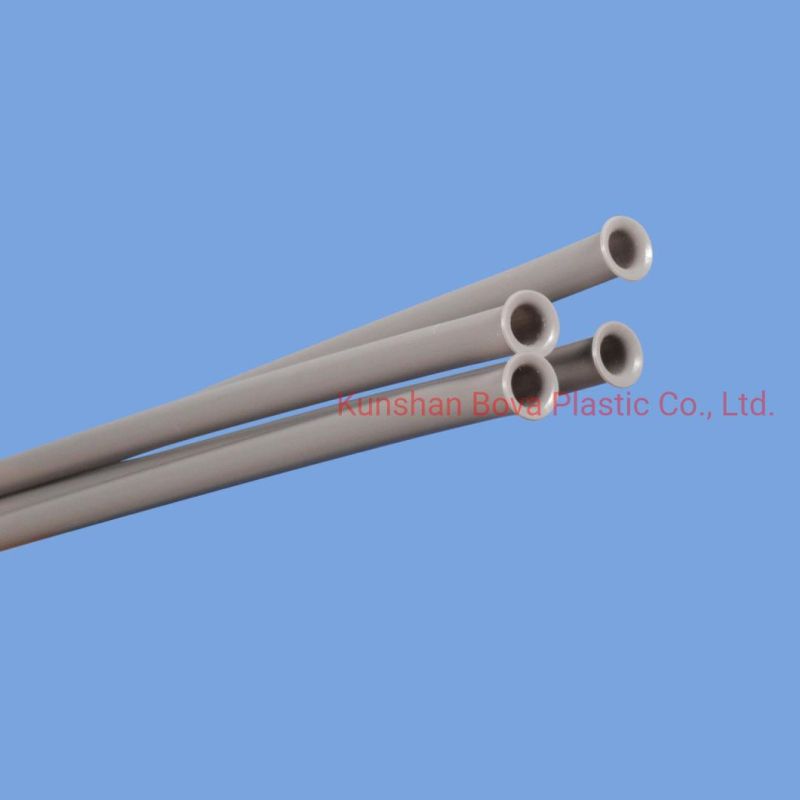

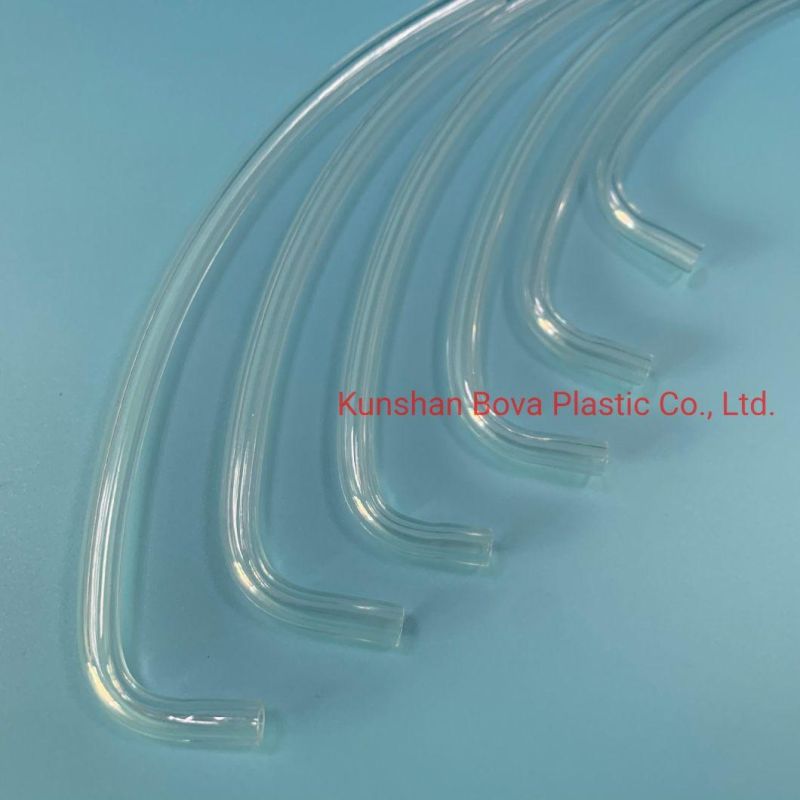

TPU Tube of TPU(Polyurethane) Series:

Product name	TPU Tube
Material	Polyurethane
Size	OD: 0.8mm-11.0mm; ID: 0.2mm-10.0mm.
Tolerance	±0.05mm-±0.15mm
Color	Nature/Customized
Develop condition	Transparent; 20-40% BaSO4.
MOQ	500 meters
Package	PE bags into carton
Payment term	100% T/T advance payment; or L/C at sight.
Delivery time	15~25 days after order confirmed.


Properties of PU (Polyurethane Tube)
1. High transparency.
2. Excellent hydrolysis resistance, oil resistance, mucedine resistance, and wear resistance.
3. Excellent biocompability, no cytotoxicity and skin irritation, sensitization to human body.
4. Excellent processing performance, TPU can be processed by using the usual methods of thermoplastic materials, such as injection molding, extrusion, rolling, etc. At the same time, TPU works together with certain polymer materials to produce polymer alloys that complement each other.
5. Low temperature resistance, can maintain good flexibility, softness and other physical properties at -35ºC.
6. Good tensile strength and elongation: TPU's tensile strength is 2-3 times of natural rubber or synthetic rubble.

Material Characteristic:

	HDPE	LDPE	PA12	PEBAX	TPU	PP
Density	0.96	0.93	1.15	1.01	1.2-1.25	0.88
Rigidity	60D-65D	48D-53D	68D-70D	23D-72D	60A-75D	60-69D
Max. Operation temperature	54ºC	54ºC	80ºC	80ºC	80~100ºC	80~100ºC
Min. Operation temperature	-40ºC	-40ºC	-40ºC	-20ºC	-35ºC	-20ºC
Tenacity	Commonly	good	commonly	commonly	Excellent	commonly
Color	Milk White	Translucent	Translucent	Transparent	Transparent	Translucent
Reprocessing performance Characteristics	Commonly	Easy	Easy	Easy	Easy	Commonly
Chemical Resistance	Good	Good	Good	Good	Commonly	Good
Insulation	Good	Good	Good	Good	Good	Good
Biocompatibility	Good	Good	Excellent	Excellent	Excellent	Good
Medical Grade Attestation	Yes	yes	yes	yes	yes	yes

Our Company:
Kunshan Bova Plastic Co., Ltd. was established in 2008, now located at NO.578 Jujin Road, Zhangpu Town, Kunshan City, Jiangsu Province. The company mainly provides precision extrusion catheter, secondary operation for catheter and catheter custom-made service. The company produces various materials such as TPU,PE,PP,PVC,Pebax,PA,PEEK,PSU,PPSU,PC,EVA,TPE,ABS,PCL,PLA,PTFE,FEP,Silica and various shapes of extruded pipes, such as single-lumen tubes, multi-row tubes, multi-color co-extrusion tubes, multi-layer coated tubes, X-ray development tubes, Thin-walled tube, metal-coated plastic tube, microcatheter, etc. , The company has been committed to the production of plastic precision extrusion and catheter product research and development since its establishment. At present, the diameter deviation of extruded pipe can be controlled at ±0.02 mm, and the wall thickness can reach 0.06 mm. The company owns standard 100000 level clean room for production and passed ISO9001 quality system certification in 2016 and ISO13485 quality system certification in 2019.



Shipment:
By air, By sea, Or By express according to customers' request.



Major Products:
Medical Grade PA/PEBAX tube, HDPE tube, LDPE tube, PU/TPU/TPE tube, PVC tube, PP/PE tube, PC tube, PS tube, ABS tube, etc.

Our Service:
1. Extensive experience and muture technology.
2. Fast feedback, 24h service on line.
3. Specialty: extrusion tubing manufacture.




Need more information, pls feel free to contact us.
