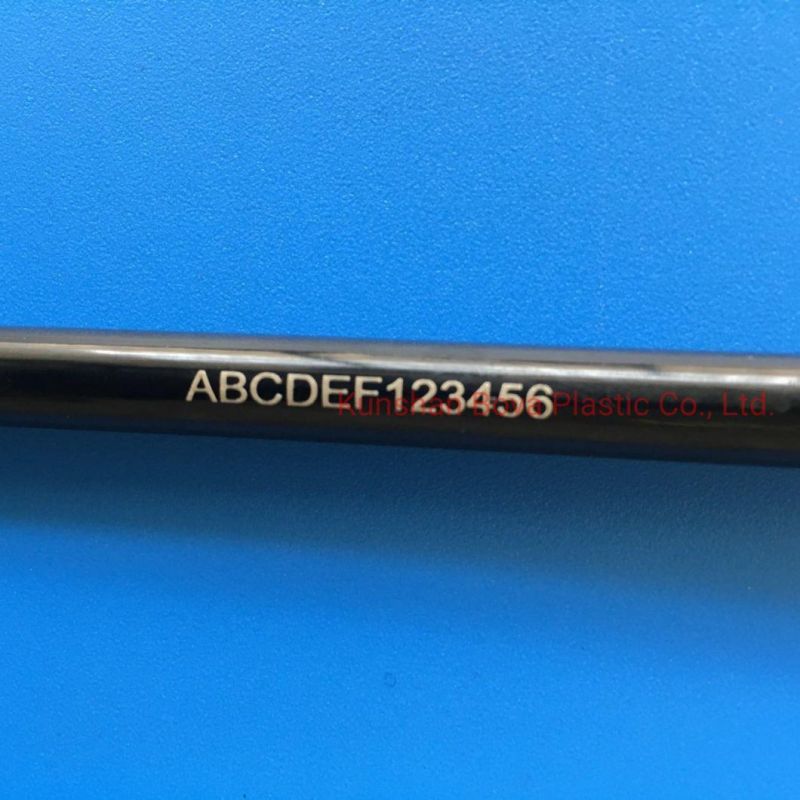

• Logo Printing：With Logo Printing
• Color：Blue,Whiter or Customized
• Hardness：60A~80d
• Size：Od:0.3mm~15.0mm; ID:0.2mm~14.5mm
• Wall Thickness：0.1mm~0.05mm
• Transport Package：PE Bag, Master Carton,Pellet
• Specification：0.3mm and 16.0mm
• Trademark：BOVA
• Origin：China
• HS Code：9018909000
• Production Capacity：50000,Week

Basic Info.

Logo Printing With Logo Printing Color Blue/Whiter or Customized Hardness 60A~80d Size Od:0.3mm~15.0mm; ID:0.2mm~14.5mm Wall Thickness 0.1mm~0.05mm Transport Package PE Bag/ Master Carton/Pellet Specification 0.3mm and 16.0mm Trademark BOVA Origin China HS Code 9018909000 Production Capacity 50000/Week

Product Description

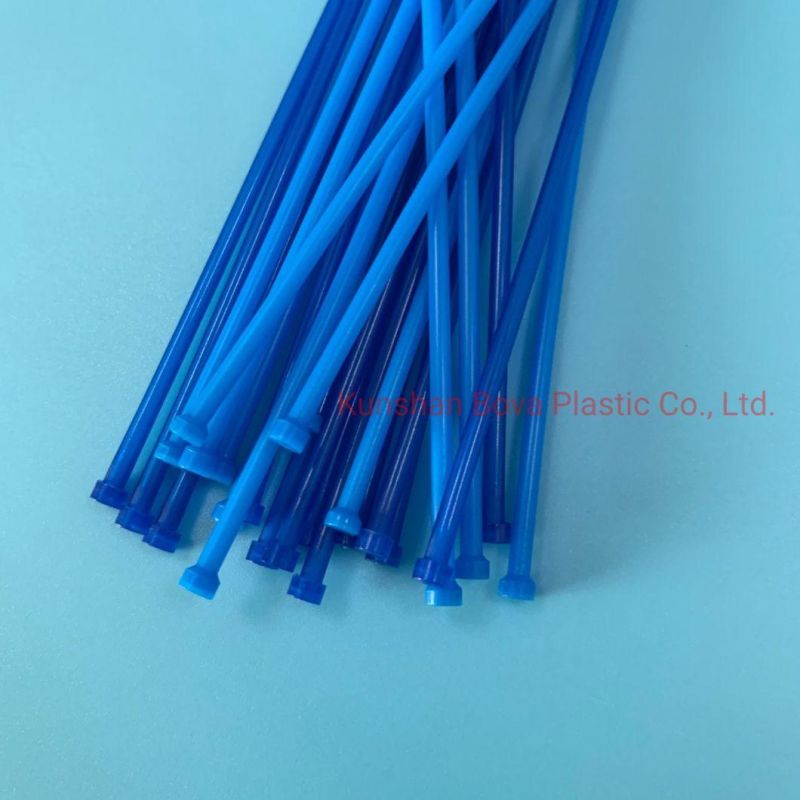

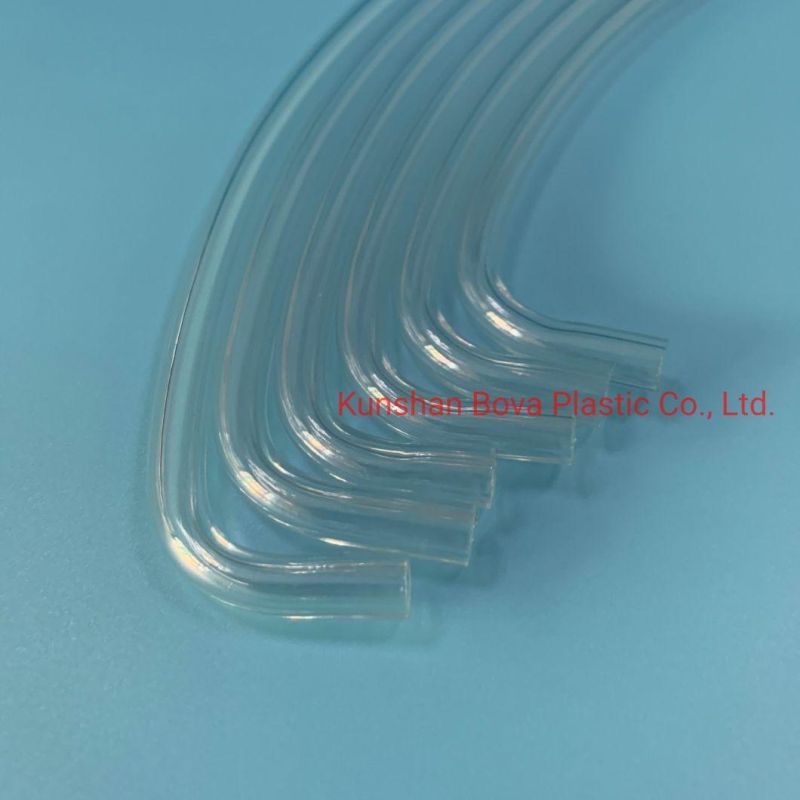

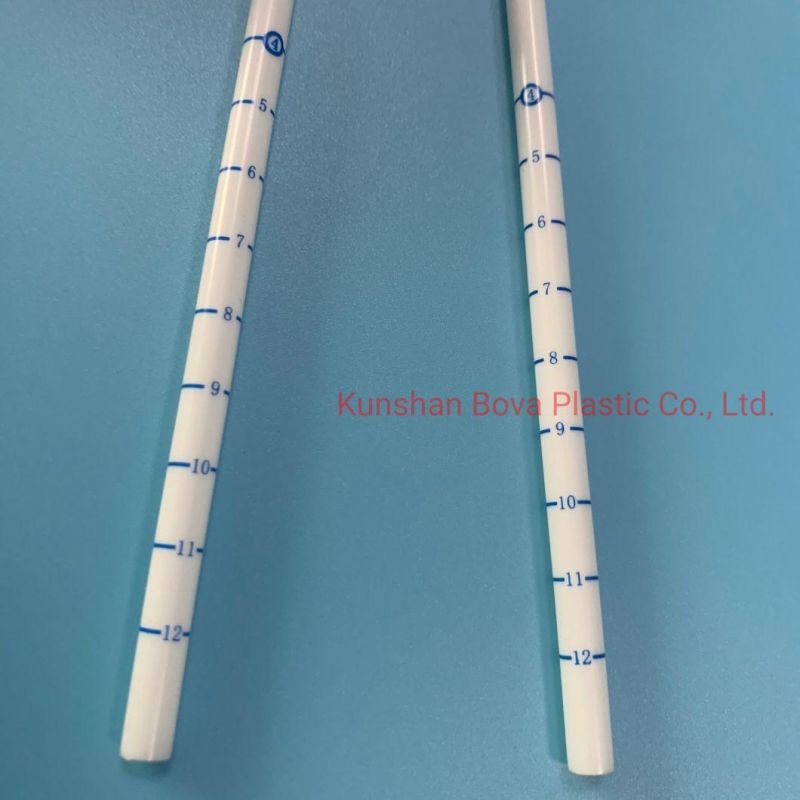

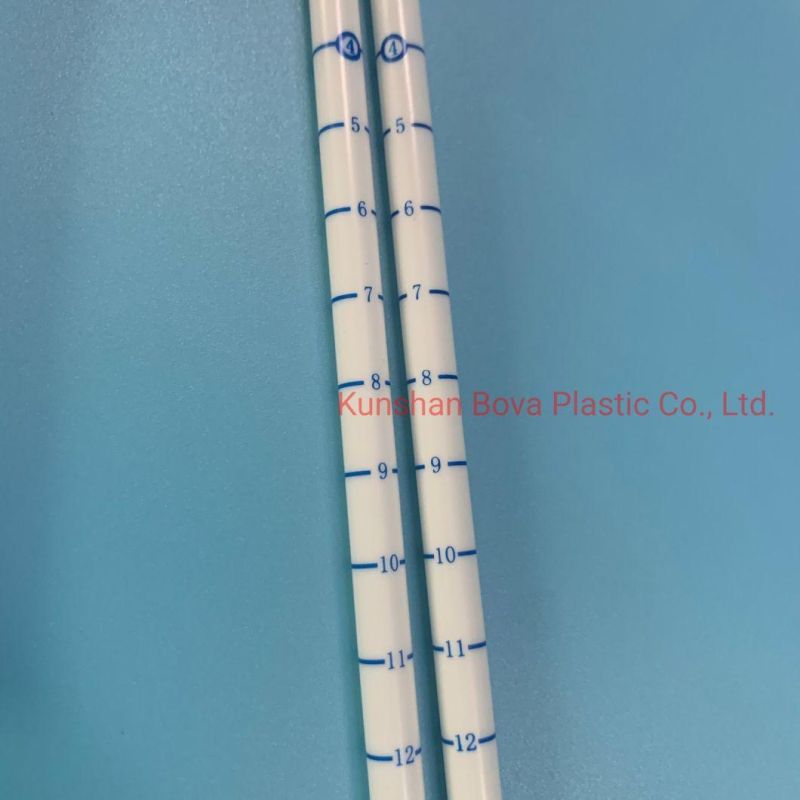

Customized 3-D Printing on Medical Grade Tubing Catheter  Post-processing
BOVA PROVIDES CUSTOM-MADE COMPONENTS FOR MEDICAL DEBVICES


Material Name	PP ( polypropylene)
Characteristics of PP	Low density(0.9g/cm3), it is one of the lightest plastics. The highest temperature of PP homo: 150ºC. The highest temperature of PP co-homo: 90-100ºC. polypropylene is high density, No Latent Chain,high crystalline polymer,have good combination property, white and translucent, wax; PP lighter than PE, PP is one of the lightest in normally plastic materials,the pp homo is more fragile over 0ºC , the PP co-homo material have lower heat distortion temperature(100ºC) ,low transparent, low glossiness, low hardness, But have stronger anti-stock strength.
Compare with HDPE	have higher strength and stiffness, and have excellent anti-bending fatigue, weakly impact performance, moisture resistance, anti- acid alkali's corrosion(except heavy H2SO4 & HNO3), anti solvent solubility (except:aromatic and chlorhydrocarbons); Hi-dielectrics strength, weakly anti-ultraviolet rays characteristic.
Size of PP tube	inner Diameter: 0.5mm~8.00mm Thickness Wall: 0.2mm~2.0mm Deviation: ±0.03mm~±0.15mm
Alternative Material	Medical grade (USP Class VI); Food grade (FDA) and Industrial Grade;
Extra value Service	Assignable of the Tube color.
Application of range	Packaging tube materials for Various medical guide wire, Instrument connecting tube; structural tube, Hemodialysis equipment tube, etc.

Material Characteristic:

	HDPE	LDPE	PA12	PEBAX	TPU	PP
Density	0.96	0.93	1.15	1.01	1.2-1.25	0.88
Rigidity	60D-65D	48D-53D	68D-70D	23D-72D	60A-75D	60-69D
Max. Operation temperature	54ºC	54ºC	80ºC	80ºC	80~100ºC	80~100ºC
Min. Operation temperature	-40ºC	-40ºC	-40ºC	-20ºC	-35ºC	-20ºC
Tenacity	Commonly	good	commonly	commonly	Excellent	commonly
Color	Milk White	Translucent	Translucent	Transparent	Transparent	Translucent
Reprocessing performance Characteristics	Commonly	Easy	Easy	Easy	Easy	Commonly
Chemical Resistance	Good	Good	Good	Good	Commonly	Good
Insulation	Good	Good	Good	Good	Good	Good
Biocompatibility	Good	Good	Excellent	Excellent	Excellent	Good
Medical Grade Attestation	Yes	yes	yes	yes	yes	yes

Our Company:
Kunshan Bova Plastic Co., Ltd. was established in 2008, now located at NO.578 Jujin Road, Zhangpu Town, Kunshan City, Jiangsu Province. The company mainly provides precision extrusion catheter, secondary operation for catheter and catheter custom-made service. The company produces various materials such as TPU,PE,PP,PVC,Pebax,PA,PEEK,PSU,PPSU,PC,EVA,TPE,ABS,PCL,PLA,PTFE,FEP,Silica and various shapes of extruded pipes, such as single-lumen tubes, multi-row tubes, multi-color co-extrusion tubes, multi-layer coated tubes, X-ray development tubes, Thin-walled tube, metal-coated plastic tube, microcatheter, etc. , The company has been committed to the production of plastic precision extrusion and catheter product research and development since its establishment. At present, the diameter deviation of extruded pipe can be controlled at ±0.02 mm, and the wall thickness can reach 0.06 mm. The company owns standard 100000 level clean room for production and passed ISO9001 quality system certification in 2016 and ISO13485 quality system certification in 2019.








Need more information, pls feel free to contact us.
